HIGHLIGHTS OF THIS BOAT

In-Mast Furling Mast and Roller Furling Head Sail, Sails replaced in 2022-23

Folding propeller

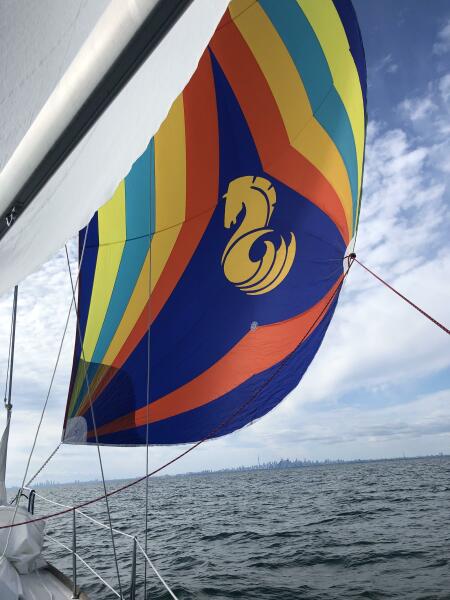

Gennaker sail and gear, Custom inlaid “SeaHorse” logo

Additional 2^nd Cabintop Harken winch#32 CST

Outboard motor bracket on stern rail

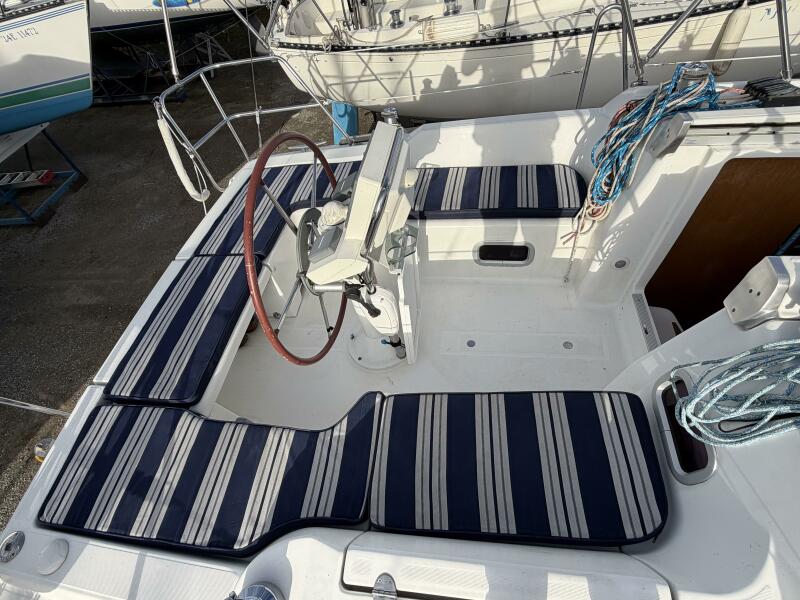

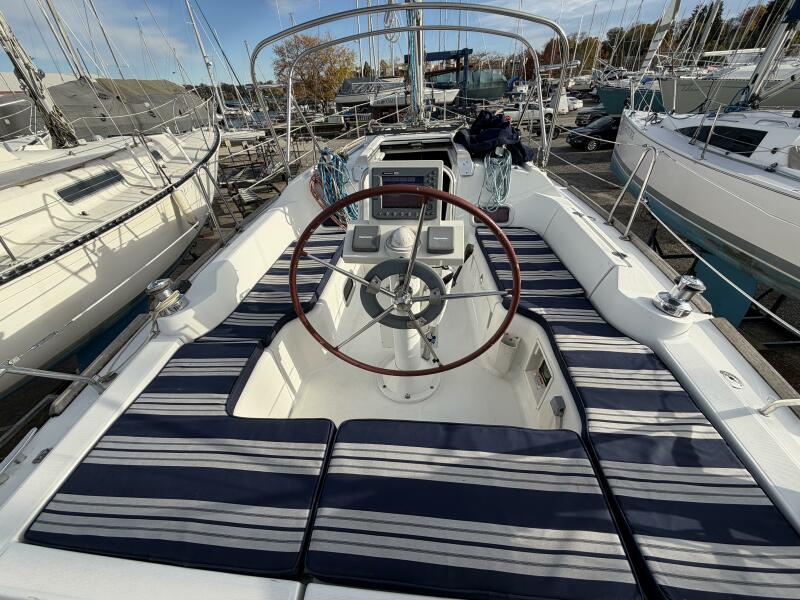

Closed cell cockpit cushions

Mattresses in sleeping cabins

SS fiddles on salon shelves

Cockpit portlight to port (added ventilation)

Transom port light (added ventilation)

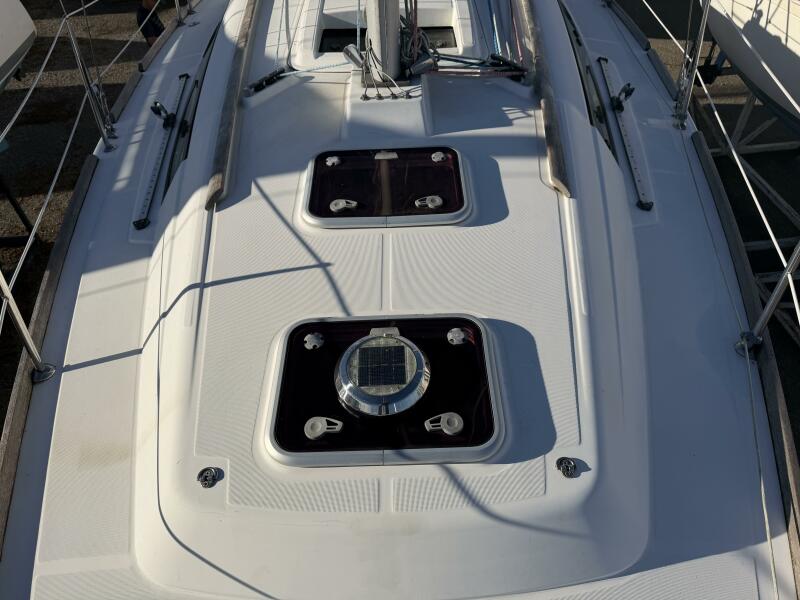

Skylight in Salon

Opening hatch in Skylight (added ventilation)

Skyscreen hatch screens with shades

Spinlock rope clutch for furling line

Custom leather covered wheel and binnacle cover (Blue Sunbrella)

Anchor package - Delta anchor with chain and Nylon rode

Docking package 4-fenders, 4+ Docklines and boat hook

Safety package-lifejackets, horn, fire extinguishers, first aid kit, throwable buoy

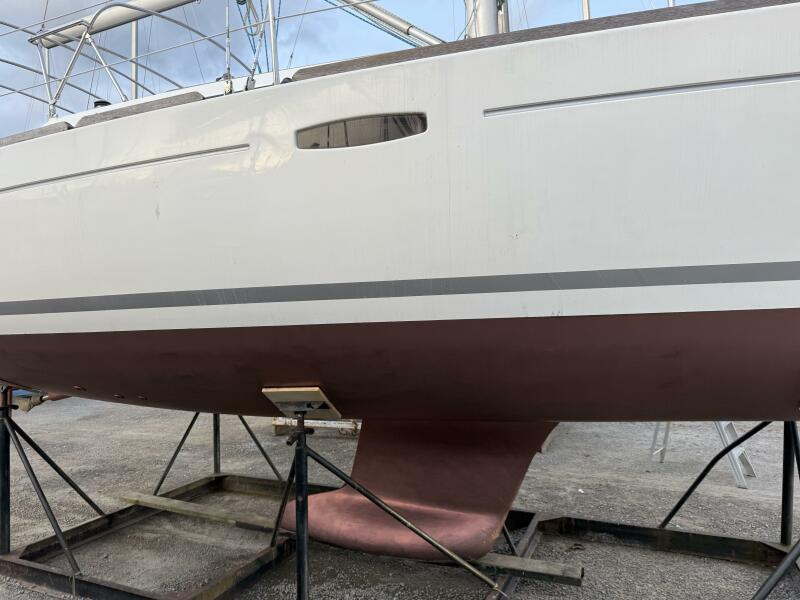

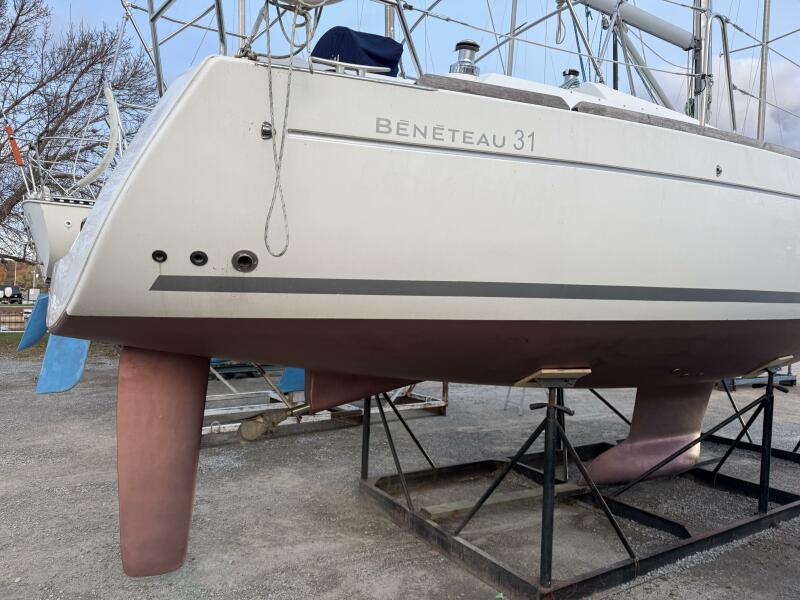

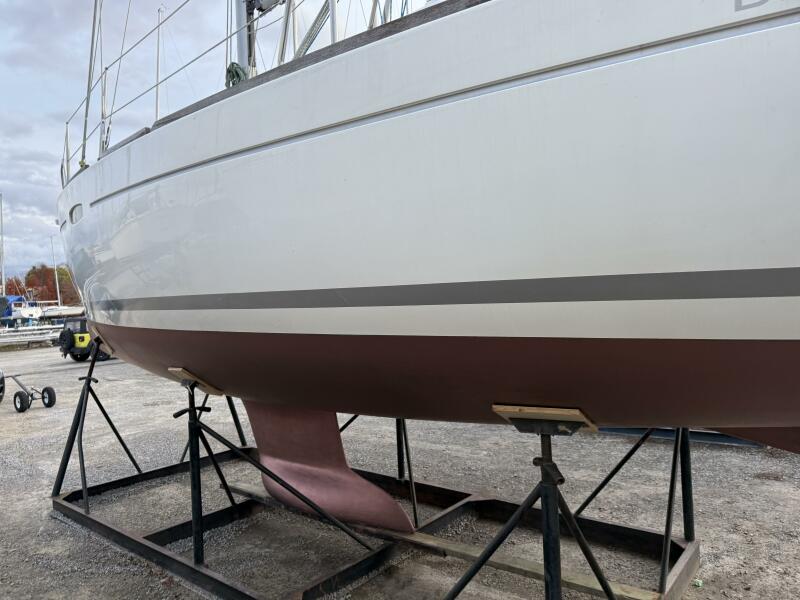

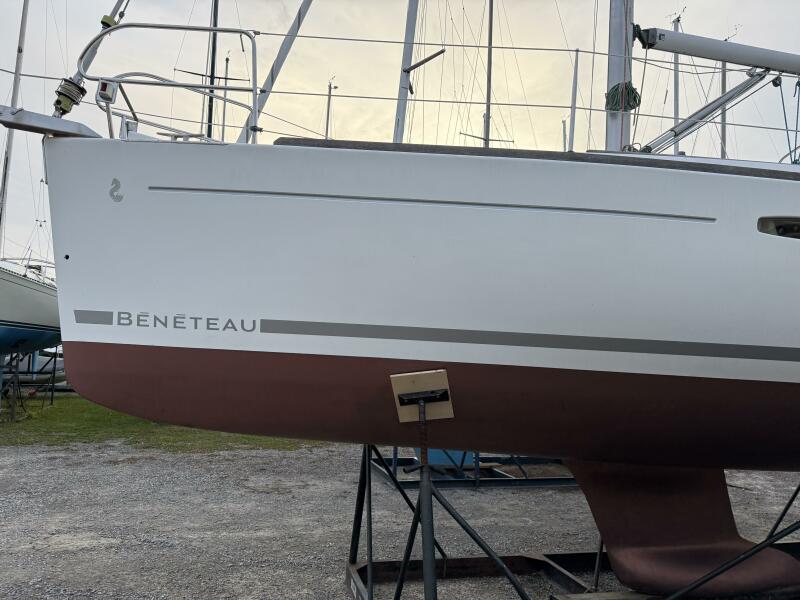

VC-17 bottom paint just painted fall 2025

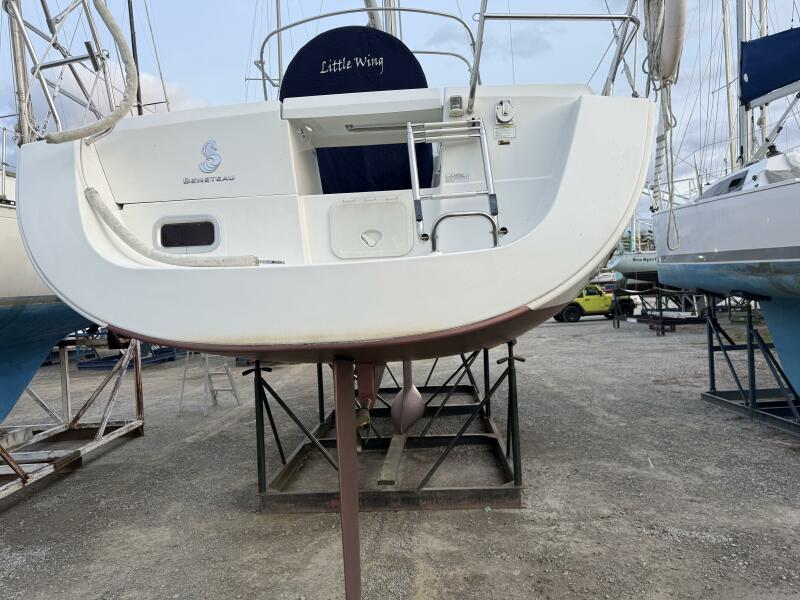

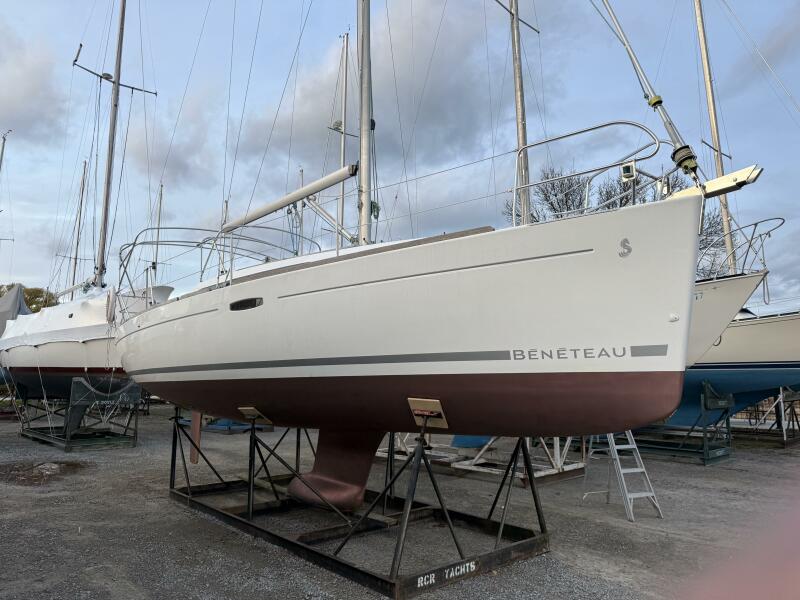

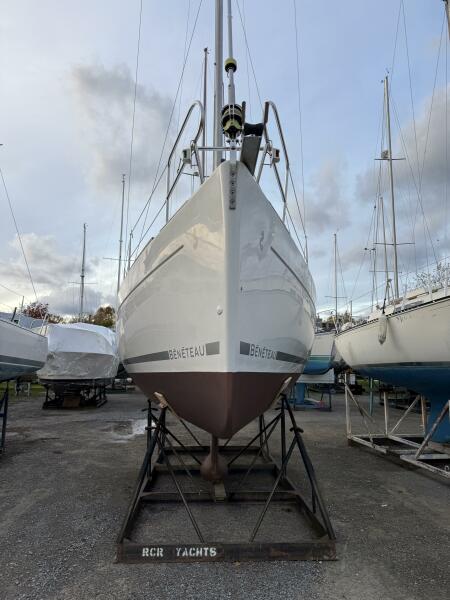

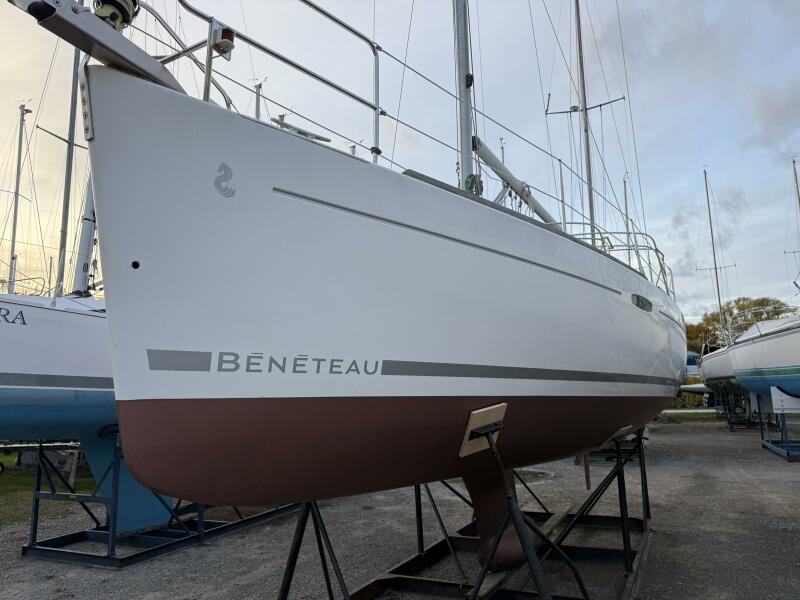

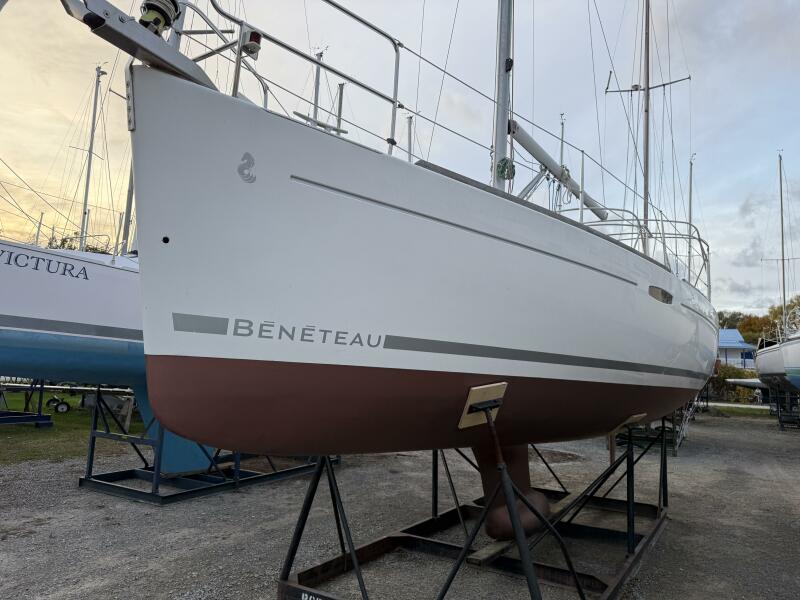

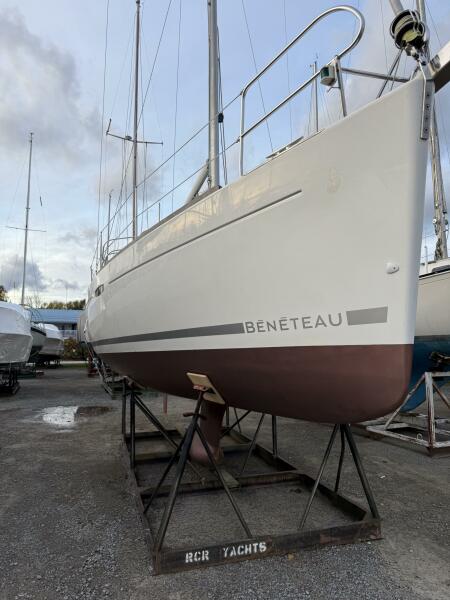

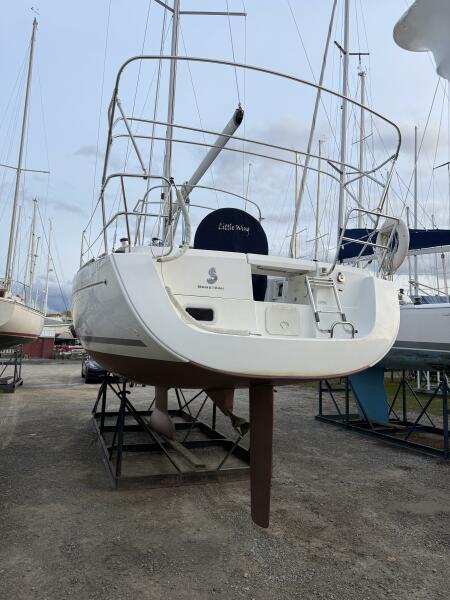

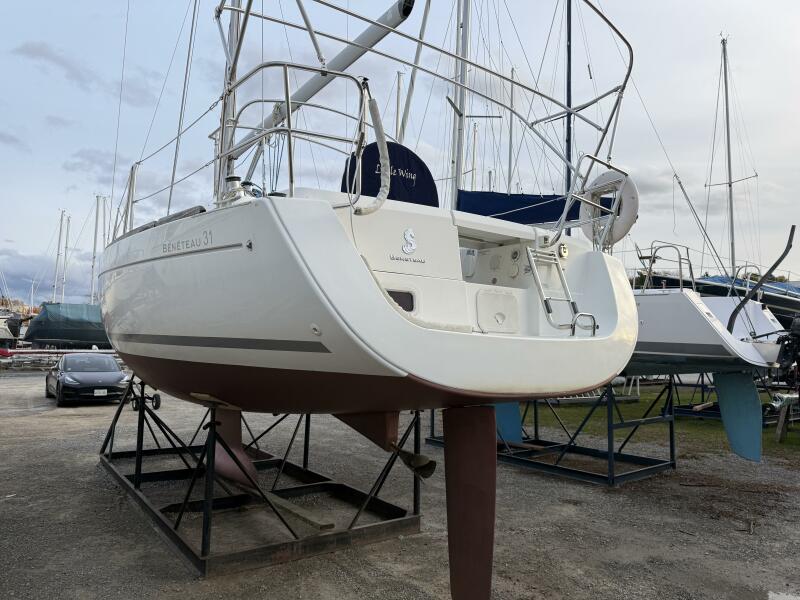

Steel storage cradle with bunks

Some newer running rigging in 2021

Information & Features

Engine: Yanmar 3YM30

Fuel Type: Diesel

Power: 20 hp

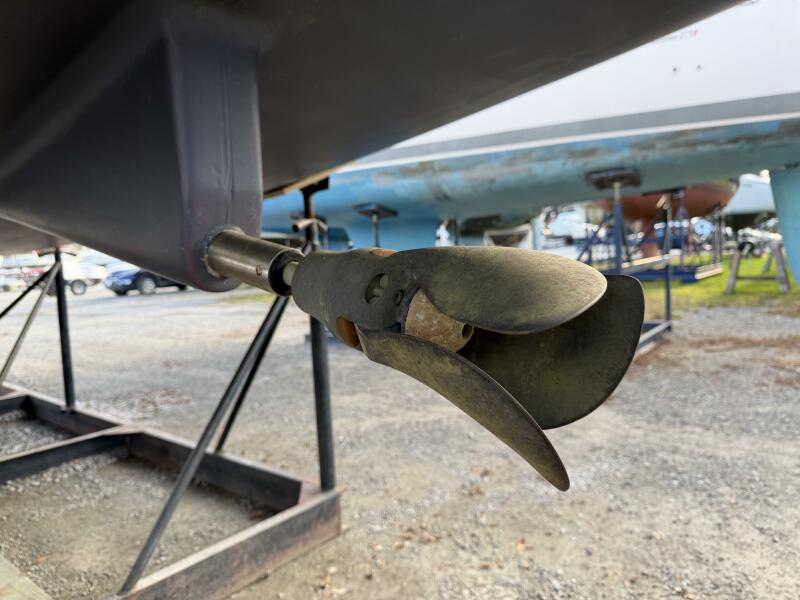

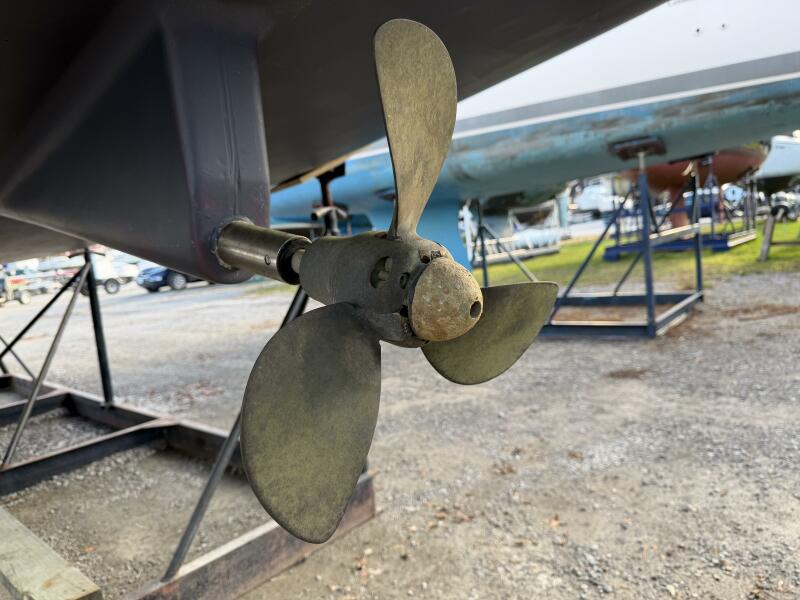

Propeller Type: 3 Blade Folding Propeller

Dimensions

LOA: 31.67 ft

Length On Deck: 30.5 ft

LWL: 28.5 ft

Beam: 11.08 ft

Draft: 4.43 ft

Weights   Ballast: 2,207 lb

Displacement: 8,933 lb

Tankage: Fuel: 34 gal

Fresh Water: 34 gal

Holding: 21 gal

Accommodations:

2 Staterooms

1 Head

CONSTRUCTION

The hull is hand-laid solid GRP bonded to a structural grid/hull liner of directional fiberglass/GRP for a strong, stiff, light composite. Vinylester hull barrier coat to resist osmotic blistering and zone-specific stitchmat laminates for a specific increased strength optimization. The cored GRP sandwich construction for stiffness, thermal and acoustic insulation and for light weight. There are solid fiberglass reinforcements in high load areas with integral unidirectional GRP deck beams for added strength. The main bulkheads are bonded 360 degrees to the hull and deck for rigged tensional and compressive strength.

STANDARD EQUIPMENT

Standing rigging;

Deck stepped 9/10 fractionally rigged, In-Mast Furling, anodized aluminum mast

Aft-swept spreaders

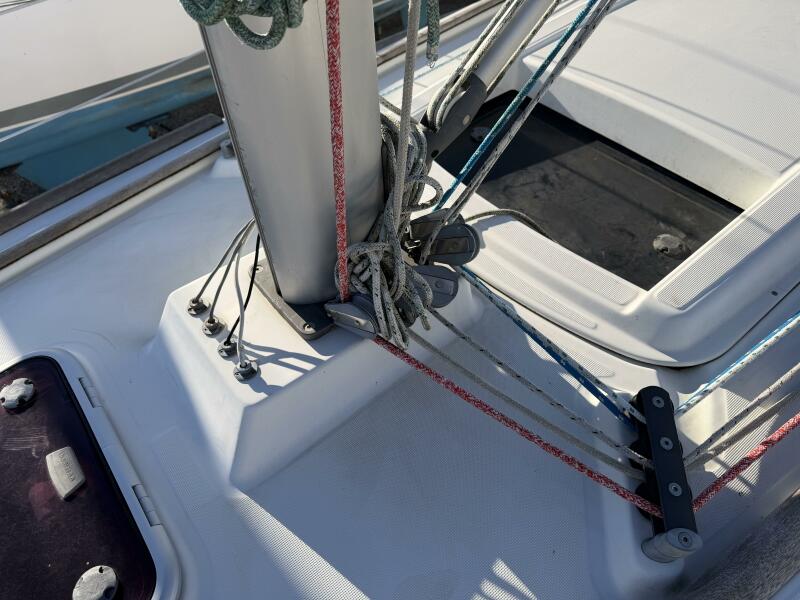

Halyard blocks attached to mast step

Anodized aluminum boom with a single line reefing-2 reefs and an outhaul

Stainless steel 1x19 standing rigging

Running rigging;

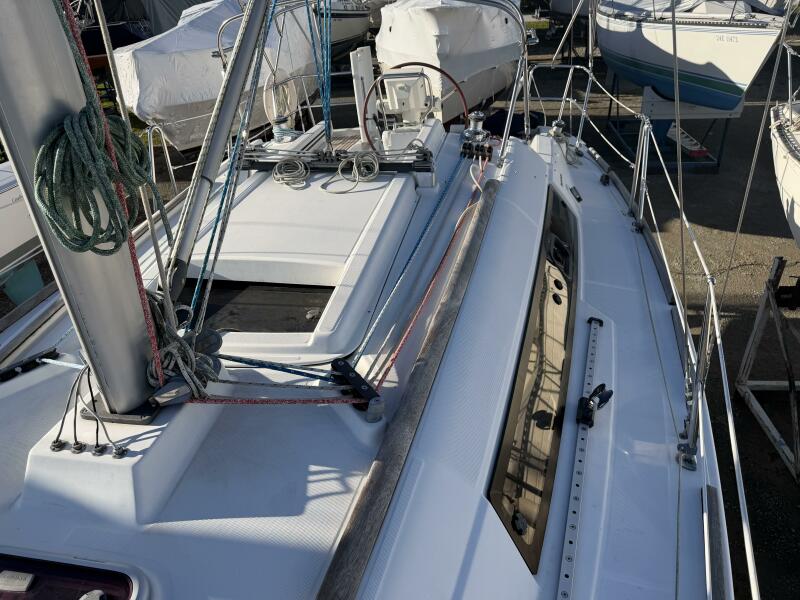

Running rigging is led aft to the cockpit

Main halyard

Genoa halyard w/jammer and cleat on mast

Boom topping lift w/cleat on mast

2-Mainsail reefing lines

Outhaul line

Mainsheet

Ridged boom vang with tackle

2-Genoa sheets

Genoa roller furling line led aft to the toes rail and jammer

SAILS & CANVAS

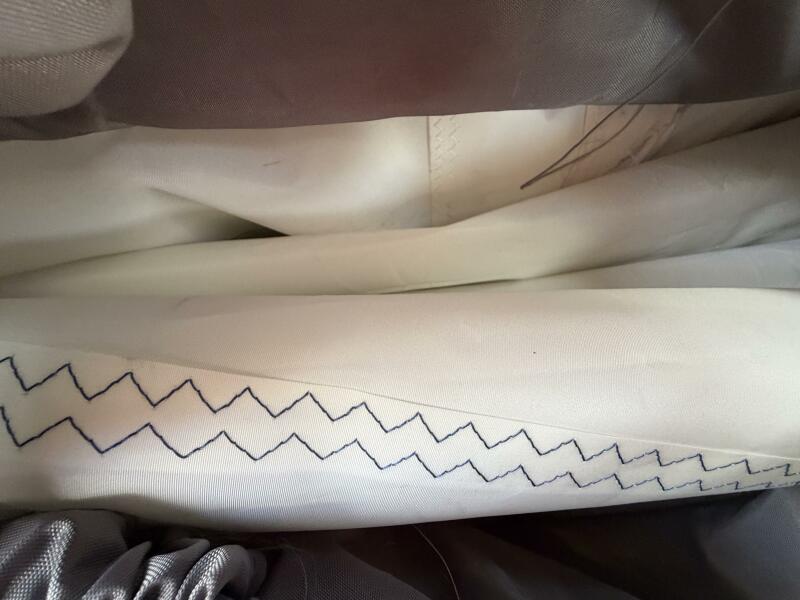

Dacron mainsail (replaced 2023)

105% Dacron Genoa (replaced 2022) on ProFurl roller furling

Beneteau Gennaker in a snuffer and with all gear (sheets, blocks, halyard)

Helm cover

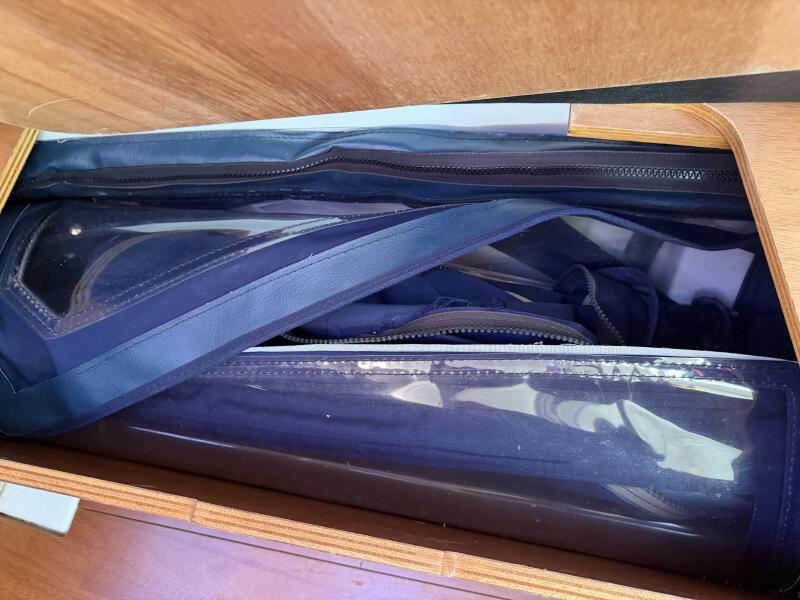

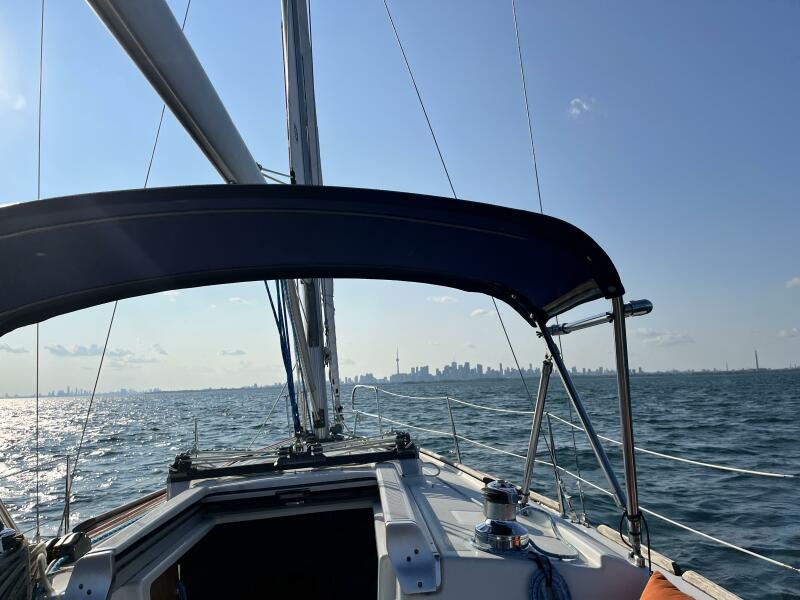

Dodger, Connector and Bimini & Framing

DECK GEAR

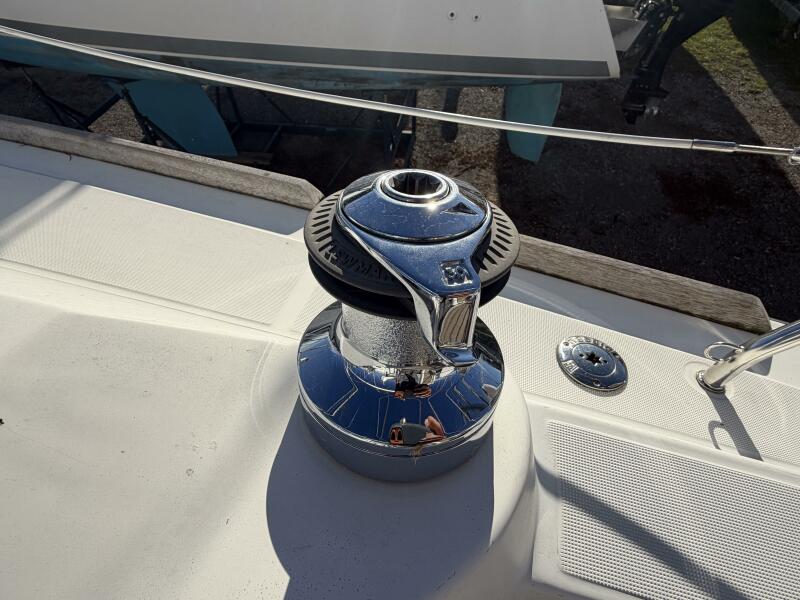

Winches are chrome finish Harken Self Tailing winches

2-Genoa sheet winches on coaming-CST#32

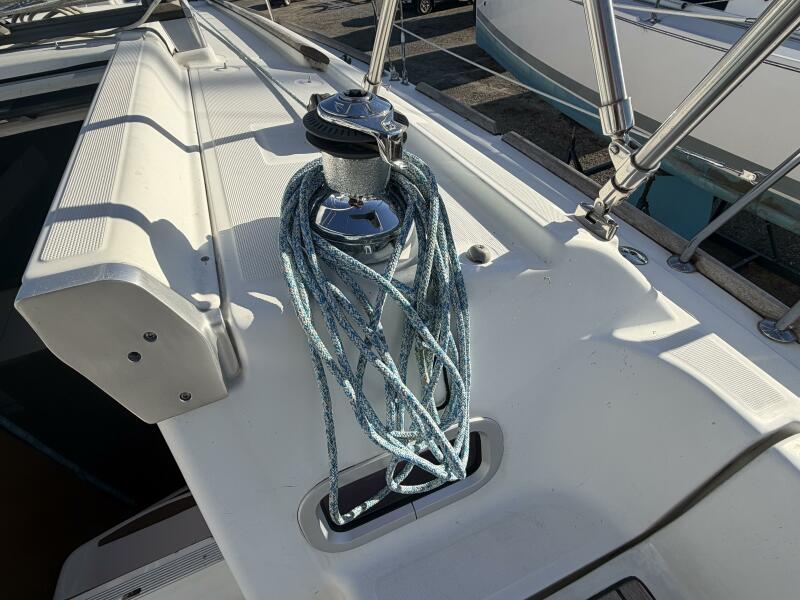

2-Cabin top Harken CST#32

5-Stoppers on Port

2-Stoppers on Starboard

Winch handles and pocket

MOORING & ANCHORING

Welded Stainless steel bow fitting

4-Aluminum 300MM mooring cleats w/SS rub strakes to protect the hull

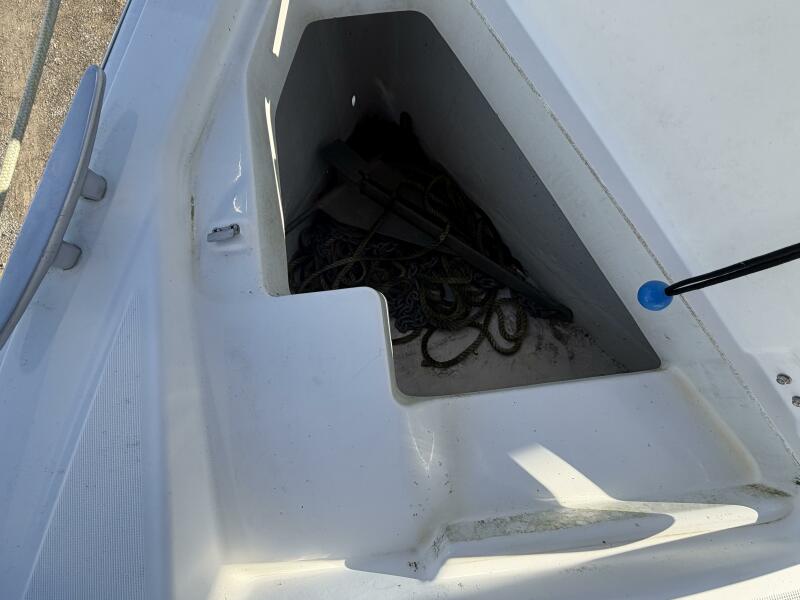

Self-draining anchor locker

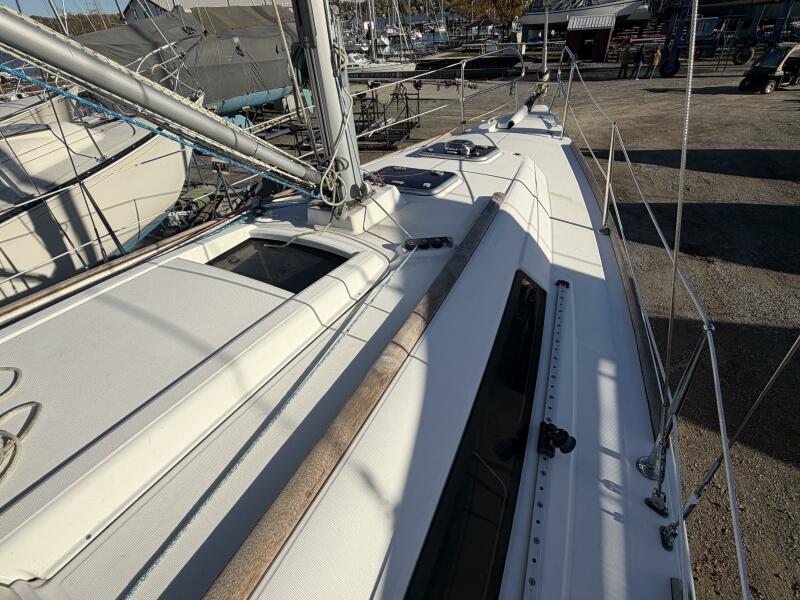

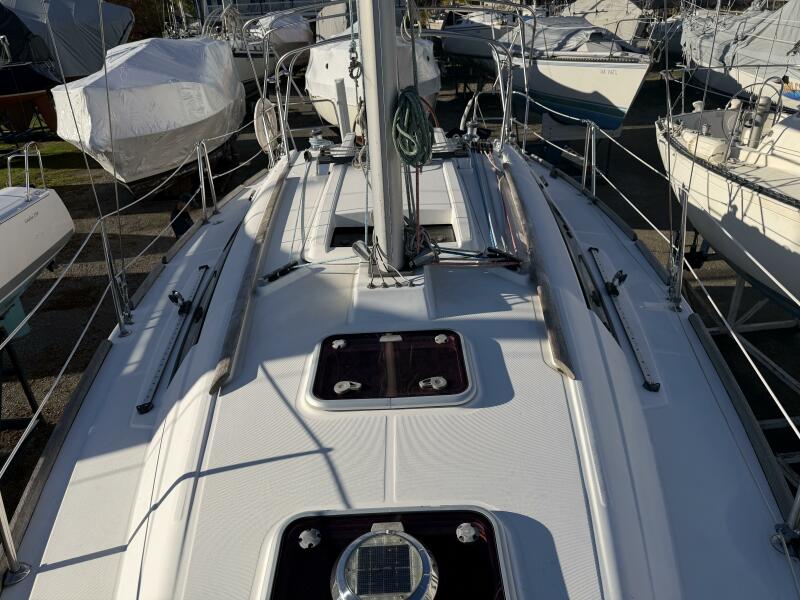

ON DECK

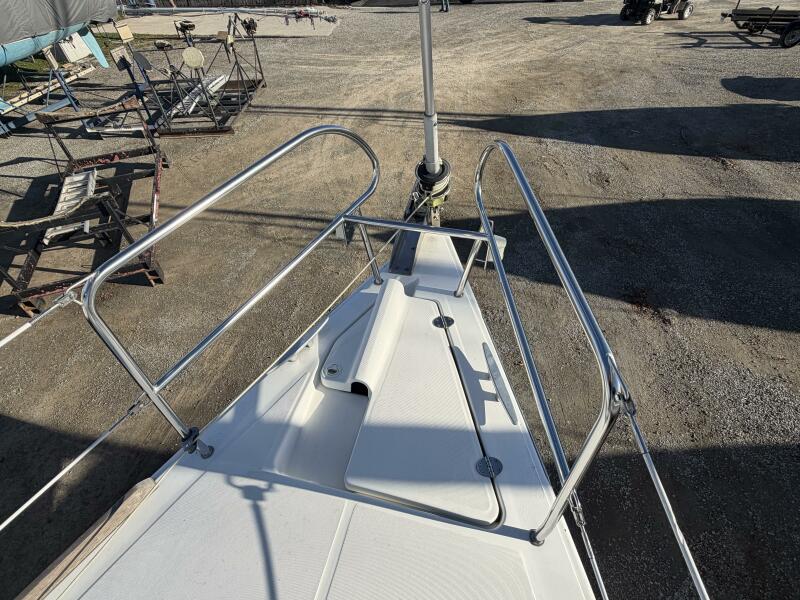

SS open bow rail w/nav light

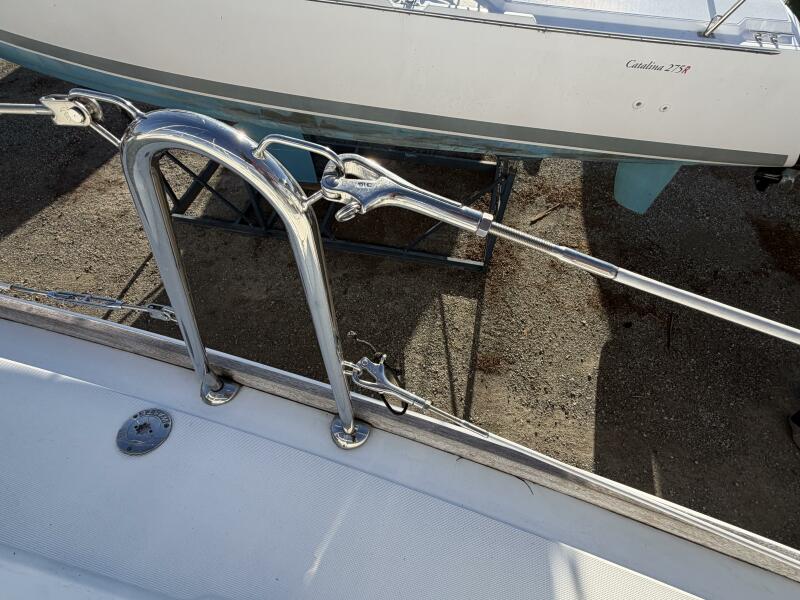

2-SS stern rails with life line between

Life buoy holder and flag staff

Double vinyl coated lifelines w/gates P&S

Real teak toe rail surrounding the deck

Teak handrails on the cabin sides

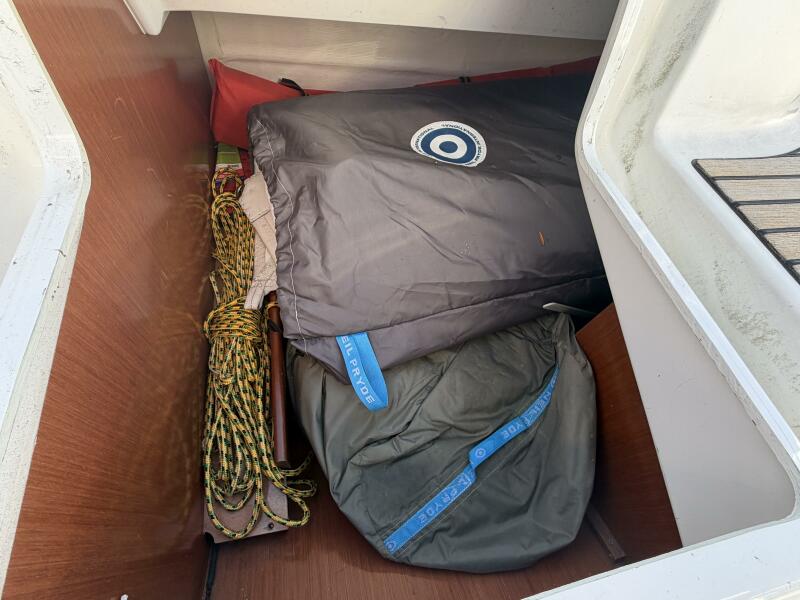

2-Cockpit storage lockers

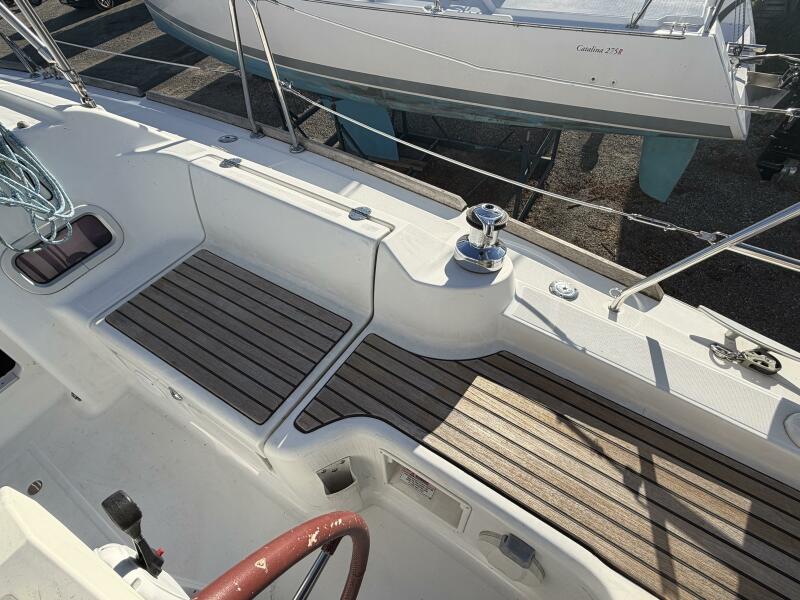

Teak inlaid cockpit seats

Pedestal mounted compass

GRP self-draining cockpit sole

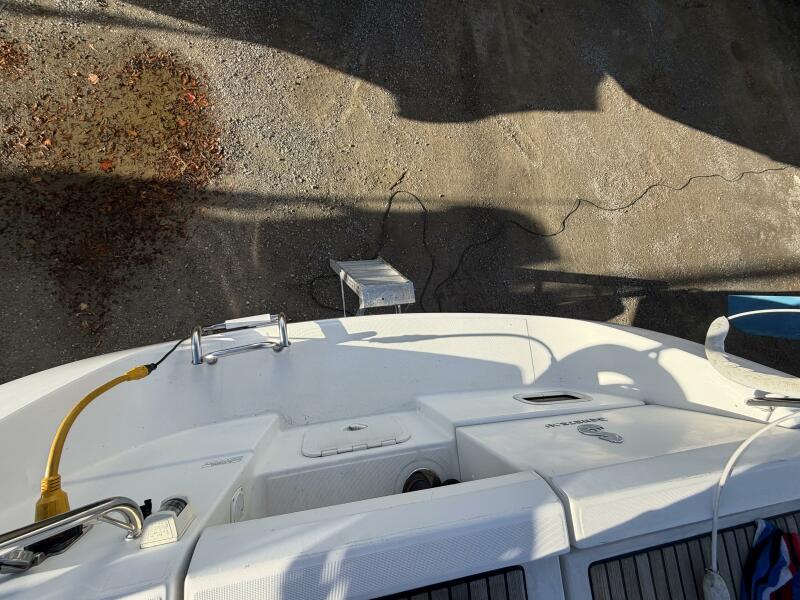

Access to swim platform and fold up helm seat

SS swim ladder

1 cockpit shower

Life raft storage compartment

Propane storage bottle compartment

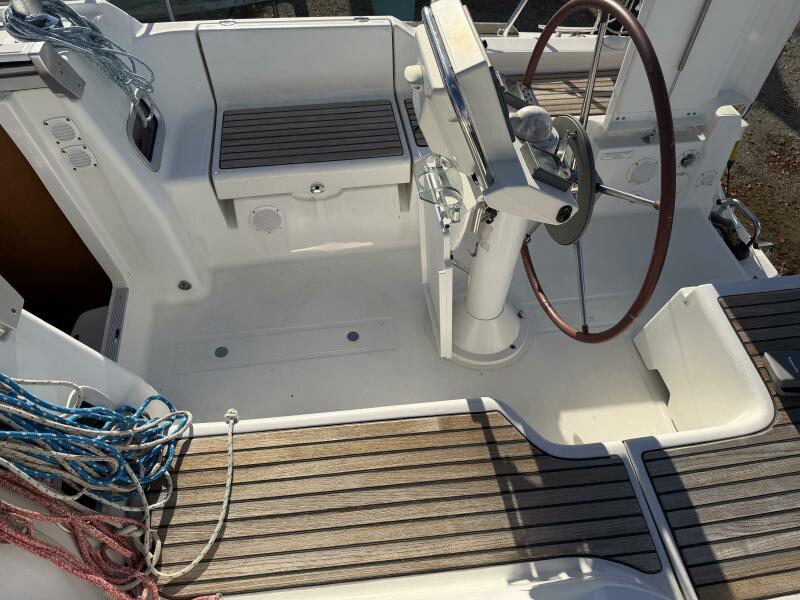

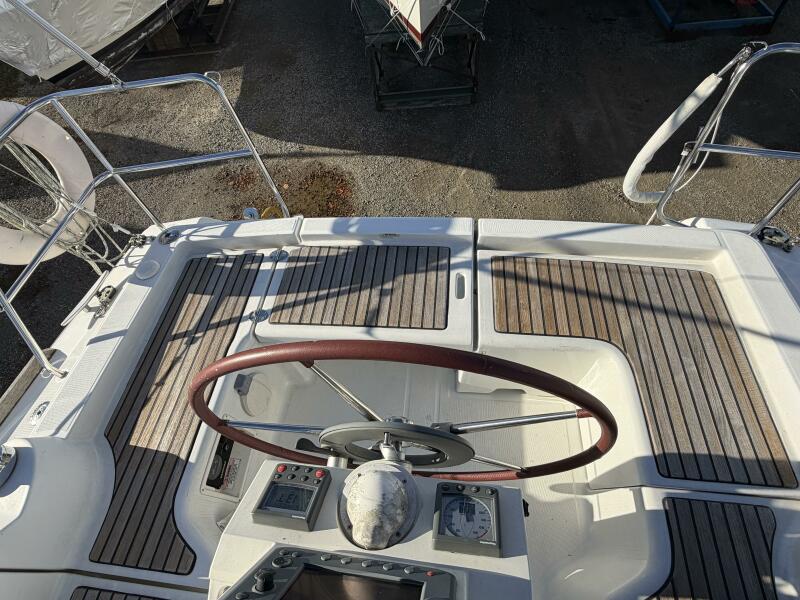

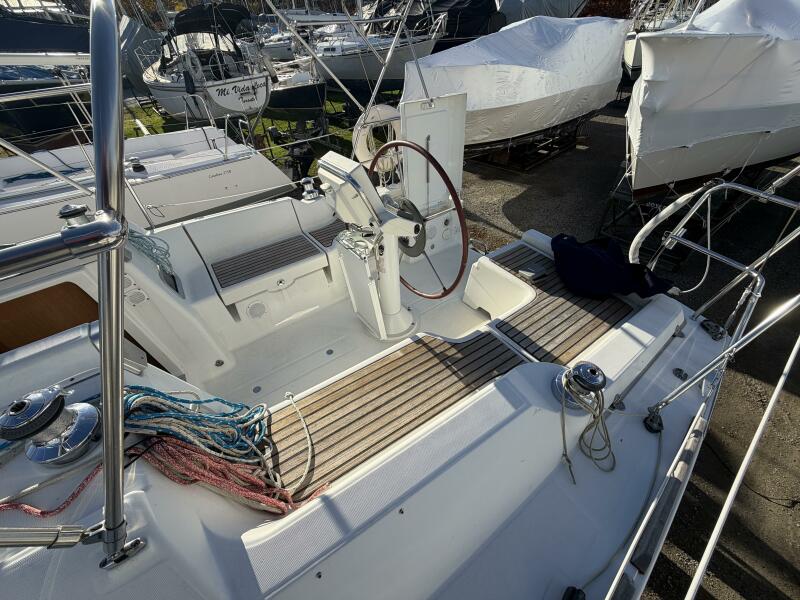

STEERING

Spade rudder with Stainless steel stock

Single steering station in aft part of the cockpit

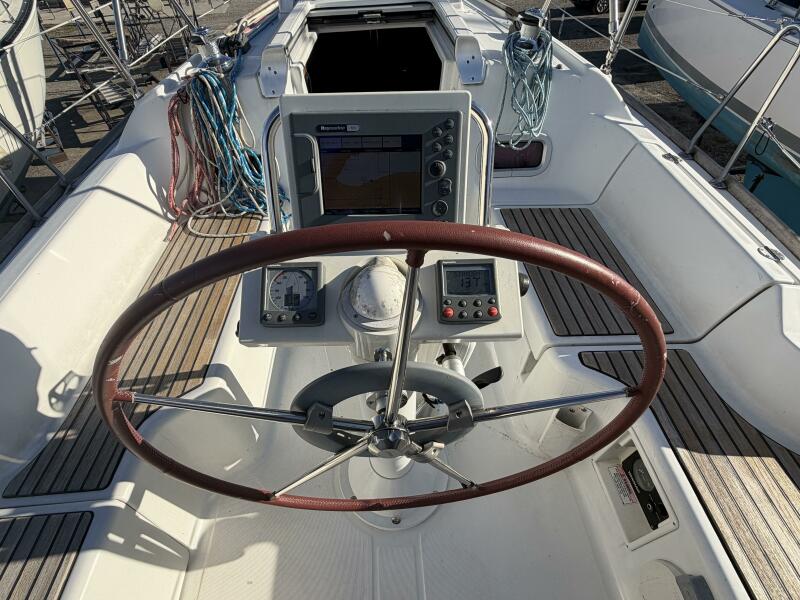

A 36” diameter leather covered steering wheel

Emergency tiller access point and emergency tiller

ACCOMMODATION

Woodwork below is fruit tree stained Alpi wood-Mahogany

Parquet look laminate cabin sole

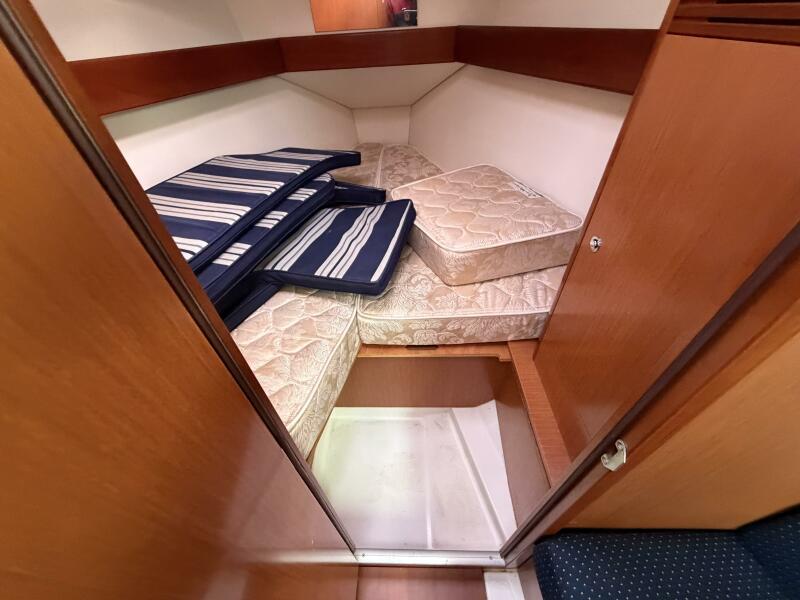

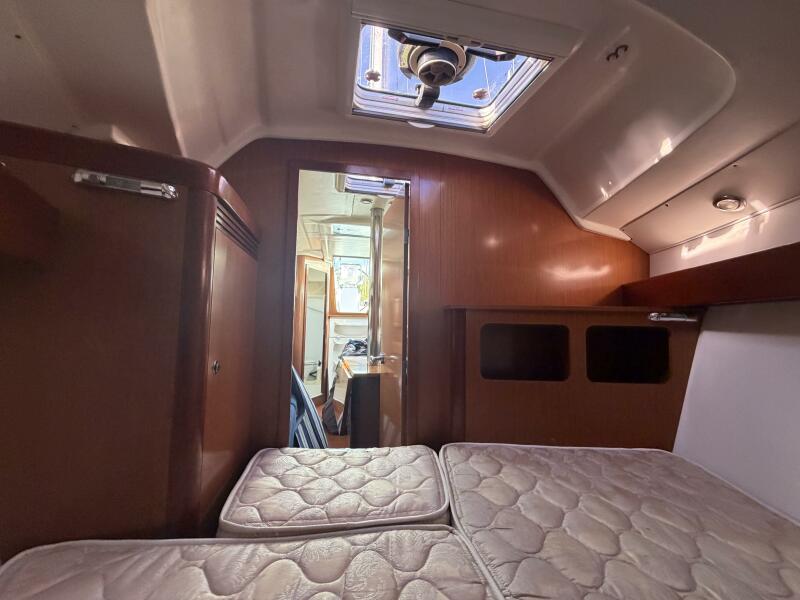

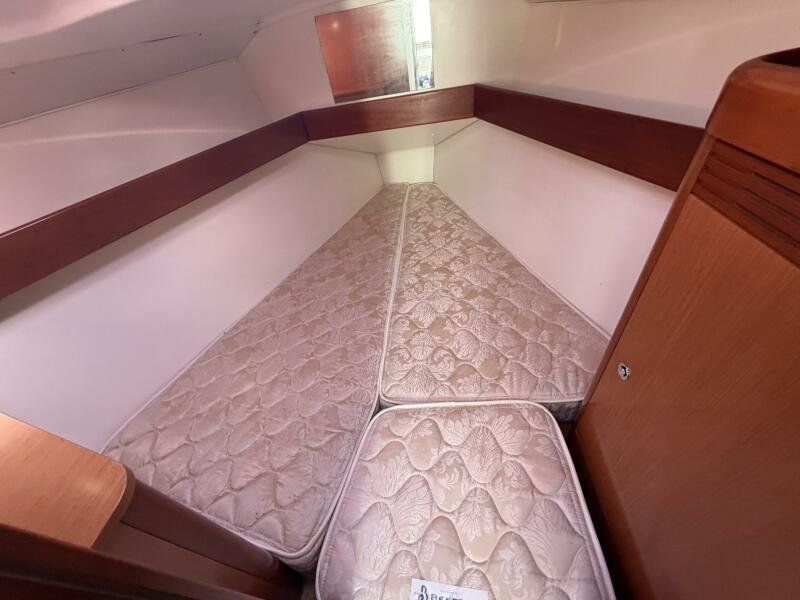

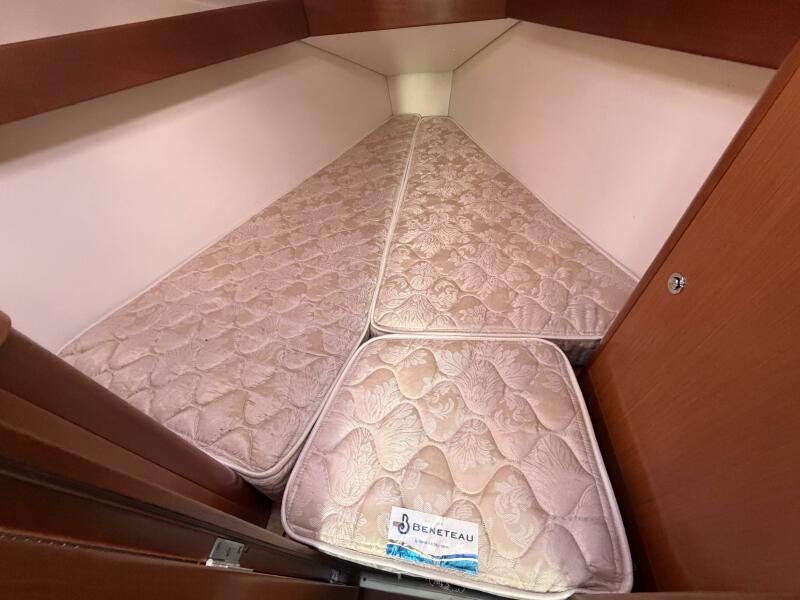

OWNER’S CABIN FORWARD

Headroom; 6’ at foot of berth

Double berth; 6’8” x 4’1” w/high quality bi-density marine mattress

Ample storage space-1-hanging locker and shelves on sides of berth

1 Stowage unit under berth

1-Opening hatch with curtain

2-strip lights and 2-overhead lights

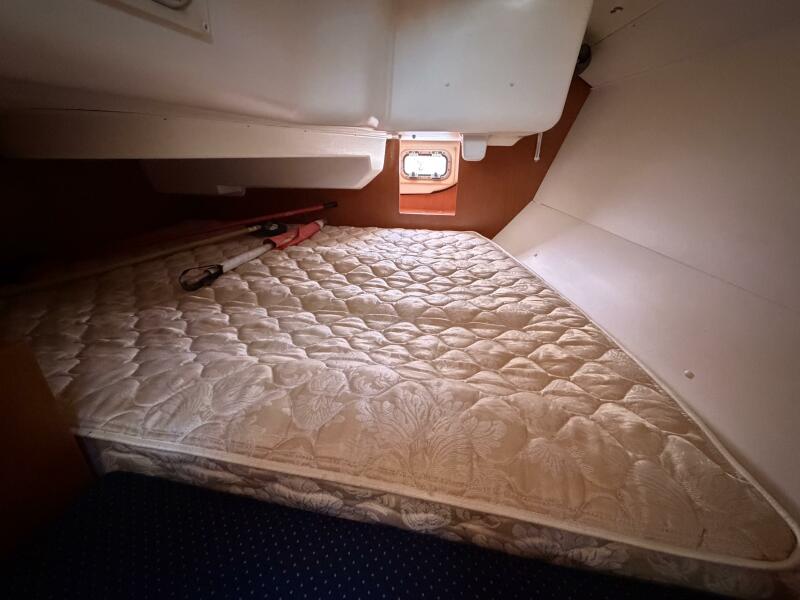

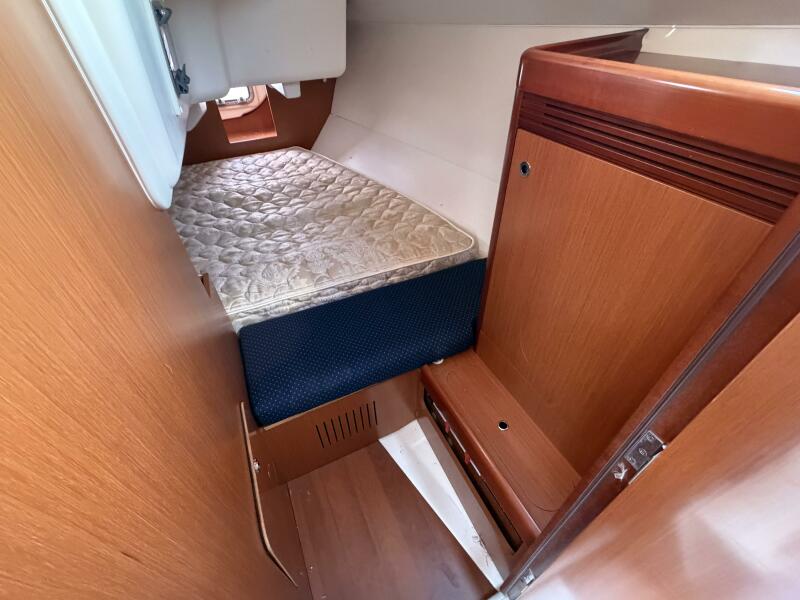

PORT AFT CABIN

Located under the cockpit providing plenty of room for 2 adults

Headroom6’

Double berth 5’7” x 6’1” W/High density marine mattress

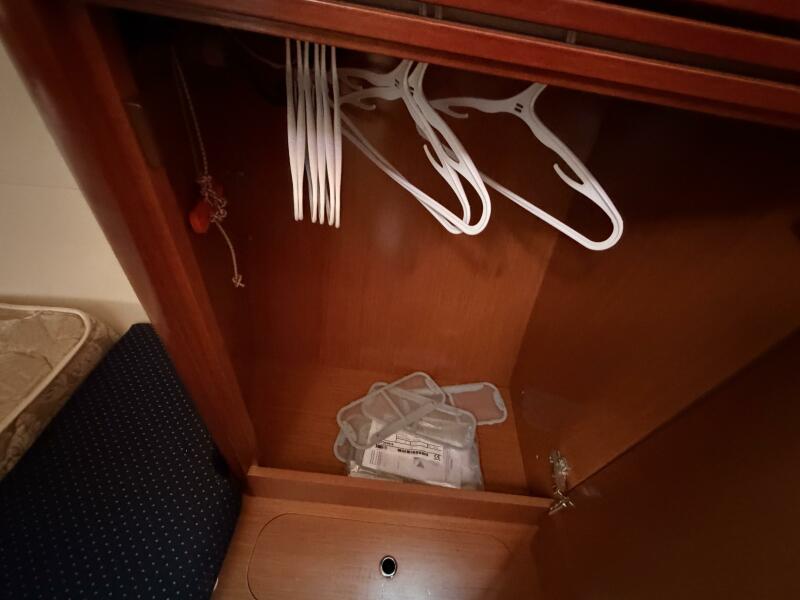

1-Hanging locker

1-opening port and cockpit back rest w/curtain

1 overhead light and 2-strip lights

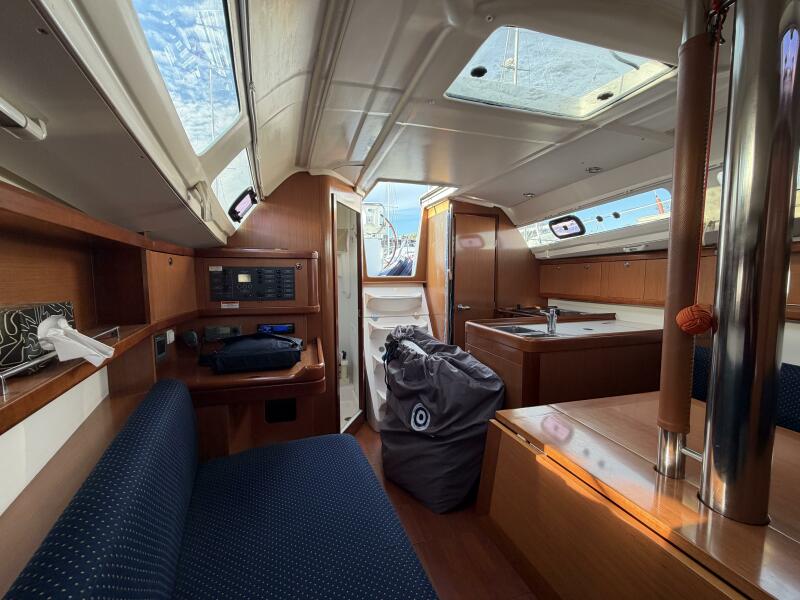

SALON & COMPANIONWAY

PMMA Companionway hatch/door

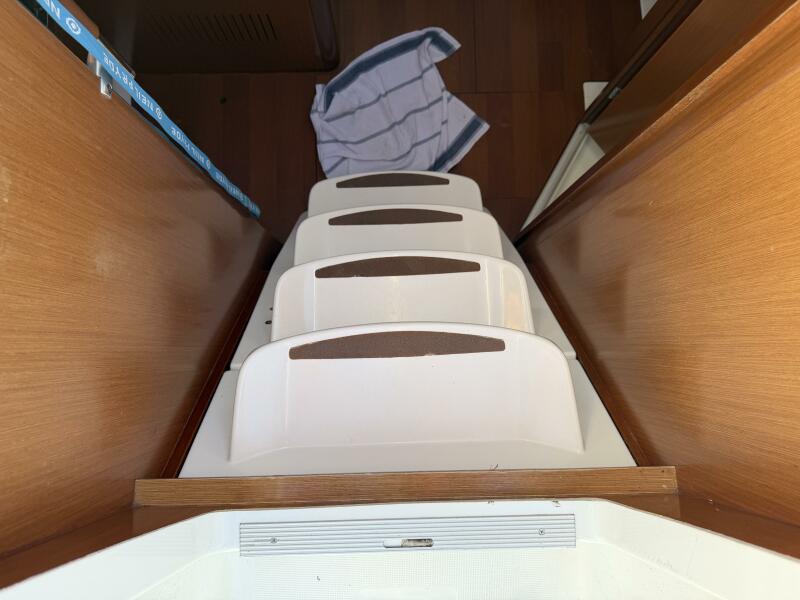

GRP Companionway and steps

1-SS handrail

1 Fixed overhead window w/curtain (skylight)

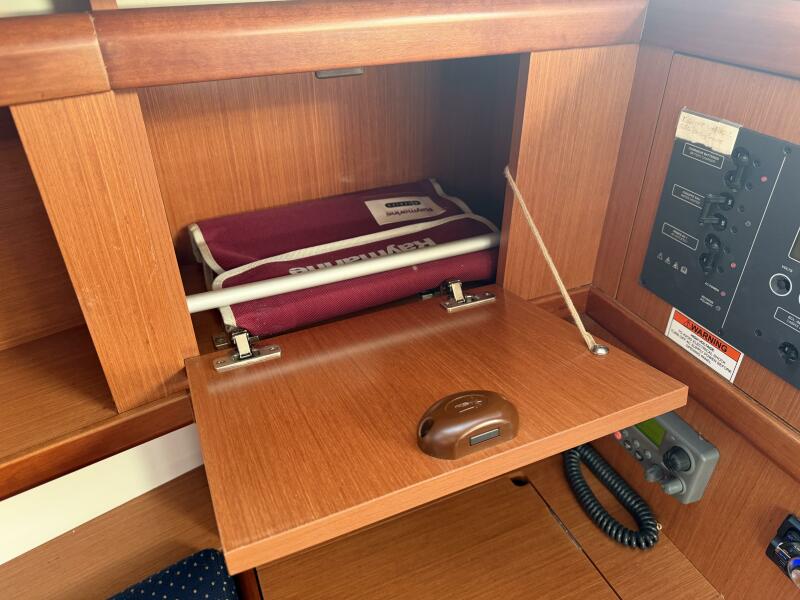

Chart table to starboard facing aft

Chart table with stowage under

Molded in wood fiddle

Shelf unit under table top

Stowage unit under nav table

Shelf above

12v Electrical panel w/12v socket

Lighting-red/white reading light at nav table

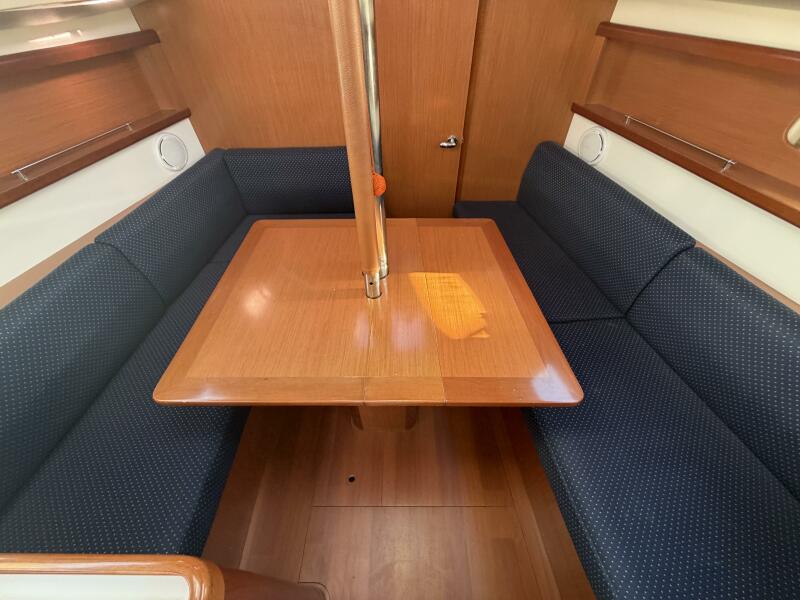

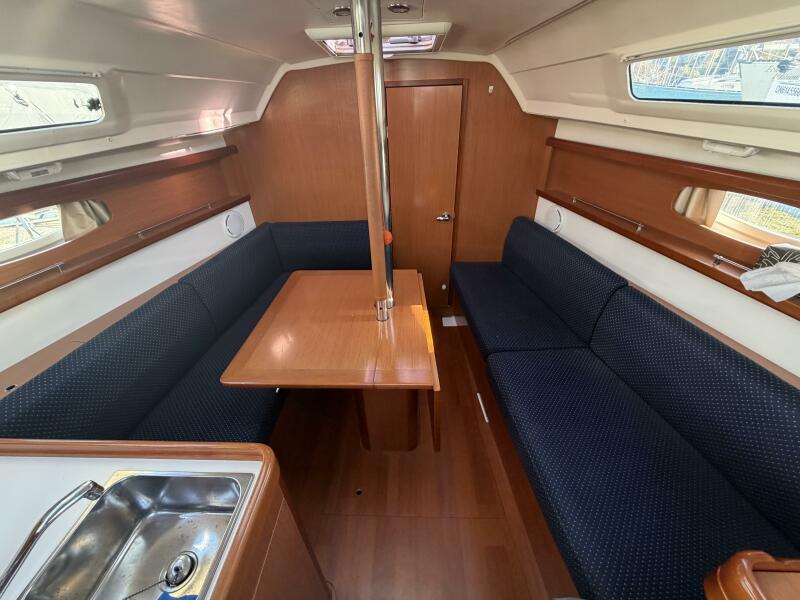

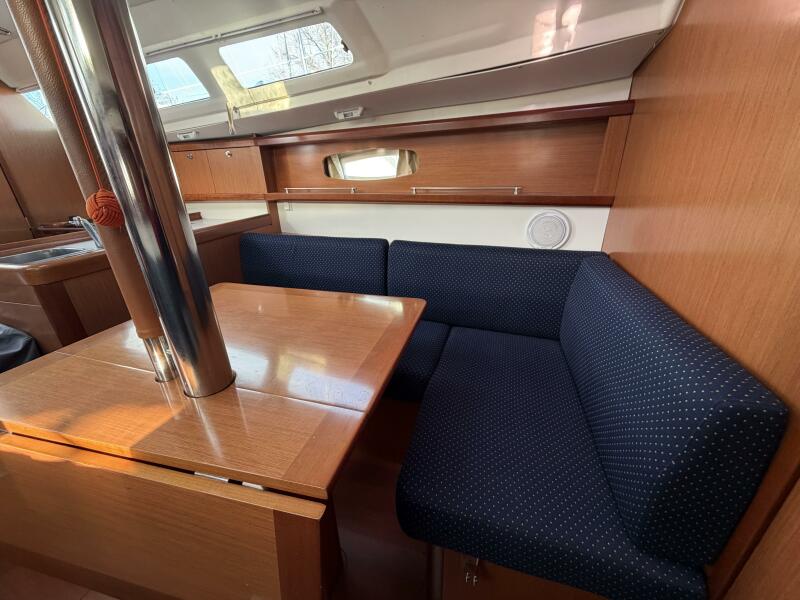

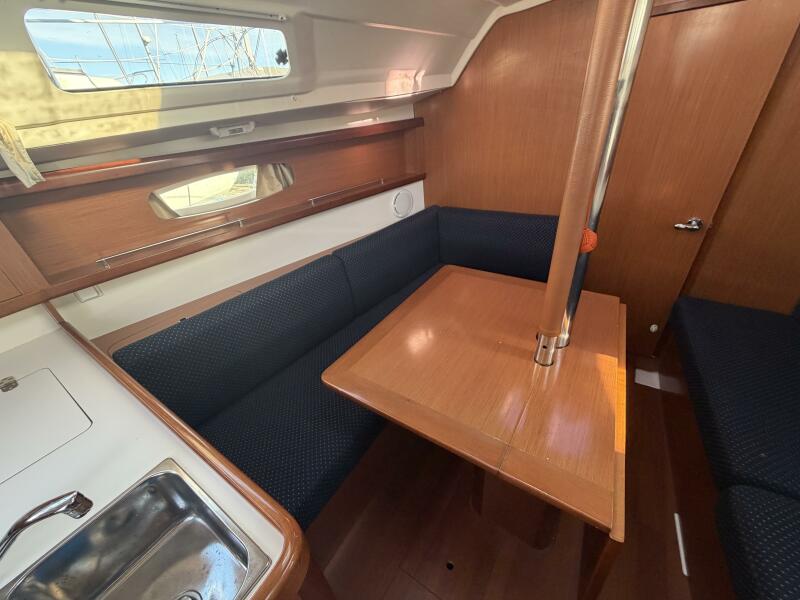

To Port-L-shaped saloon w/4/6 seating

Stowage under

Wooden salon table

Bar stowage behind seating

Closed shelf along the hull

2-Overhead lights and 2-strip lights

Large side window w/curtain

1-Opening hatch w/curtain

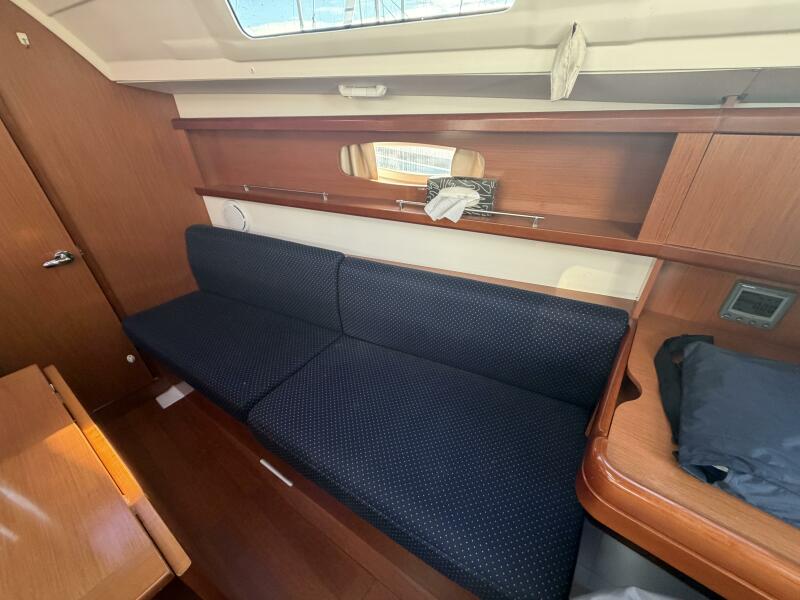

To starboard-1-settee w/storage under

Large side window w/curtain

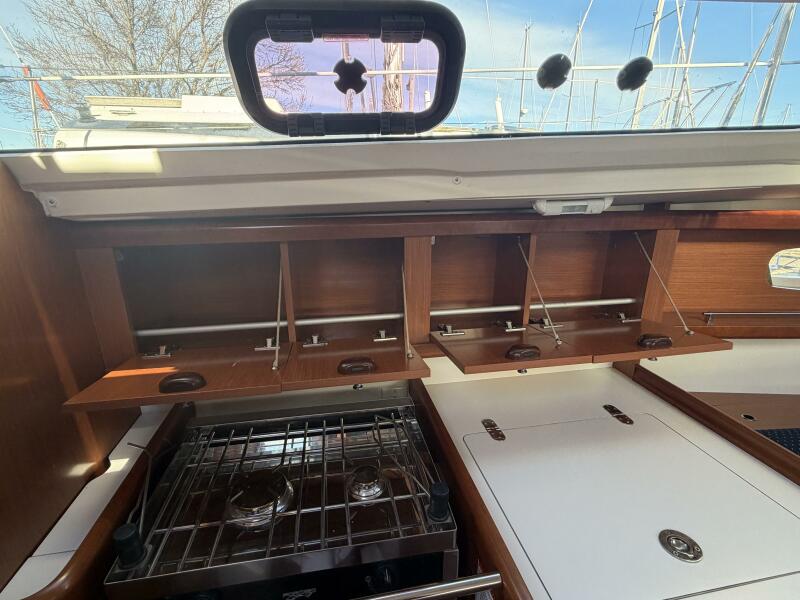

GALLEY

L shaped galley to port

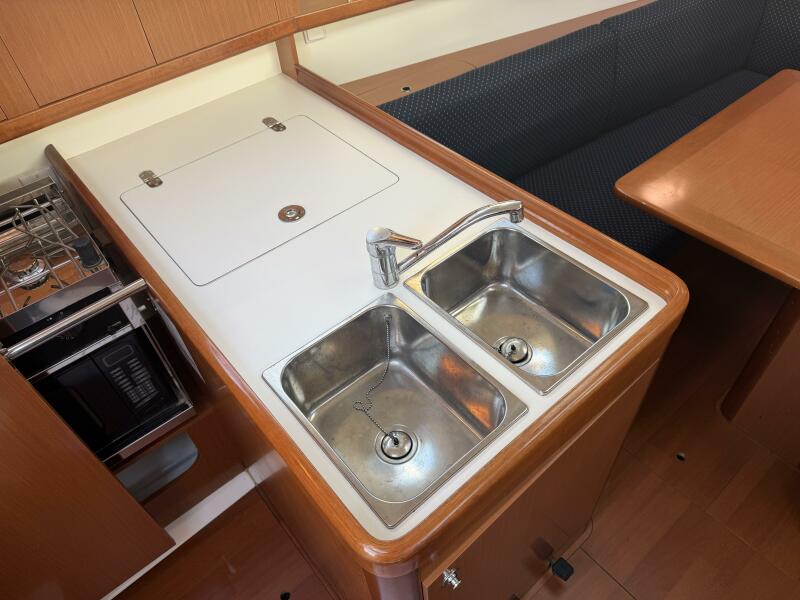

2-Rectanglular SS sinks

Mixer tap with pressure hot & cold water

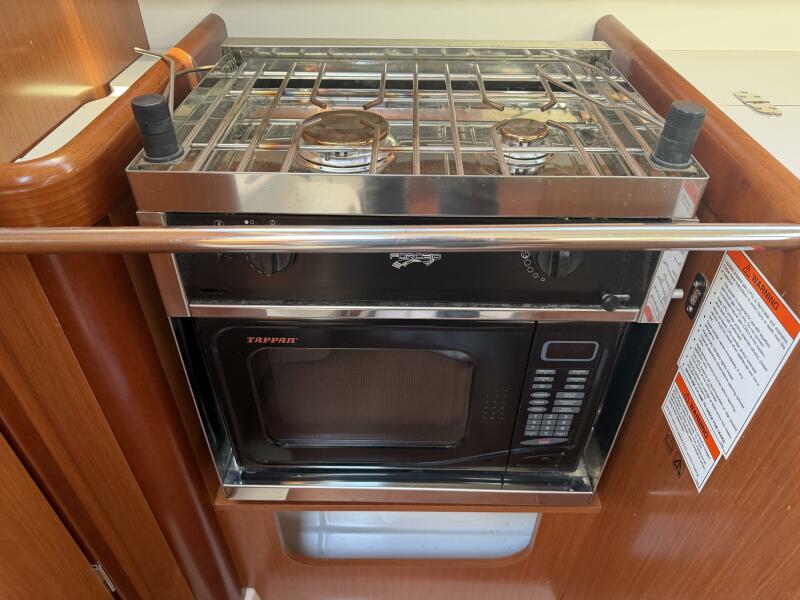

SS gimbled 2 burner stove and microwave oven w/safety rail

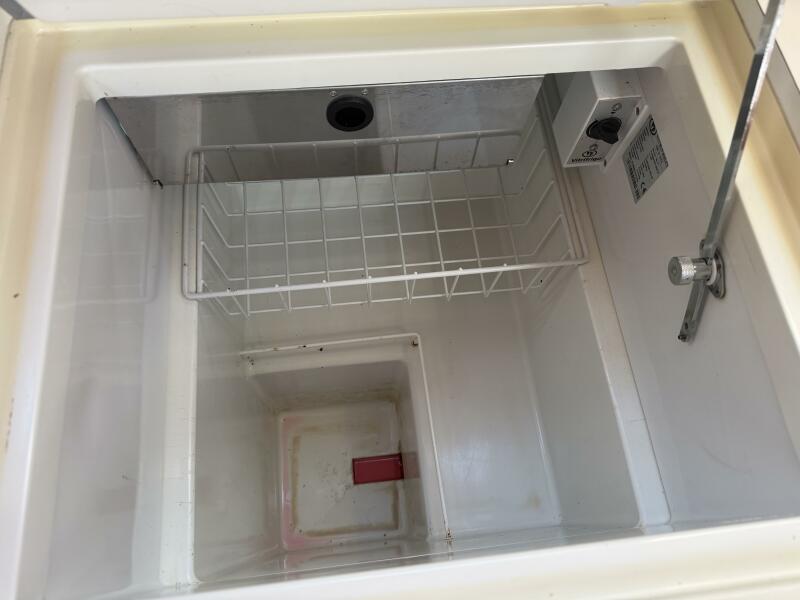

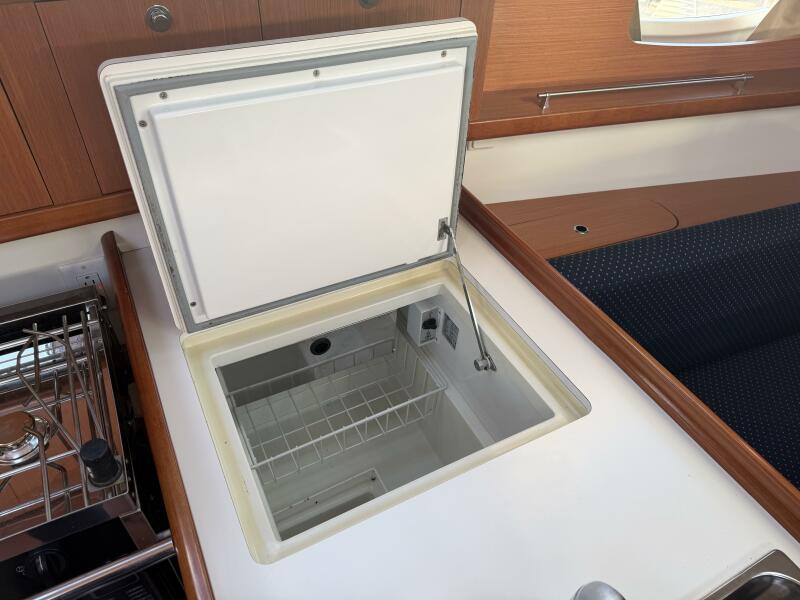

1 top opening ice box (26 gal.)-12v Refrigerator w/freezer on top

White laminate counter tops

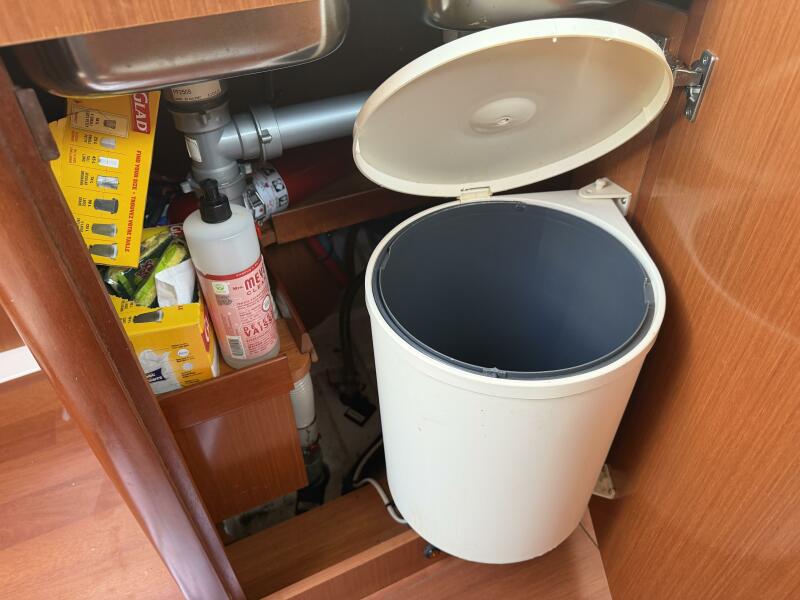

1-Single door containing waste bin under the sink

4-Closed stowage shelves

1-top opening storage locker

Storage under the stove

One opening deck port

1-strip light and 2-overhead cabin lights

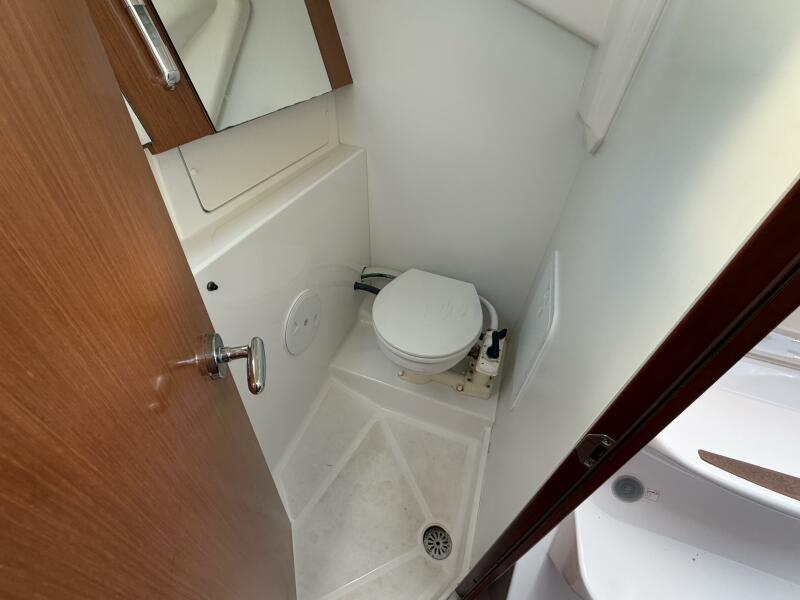

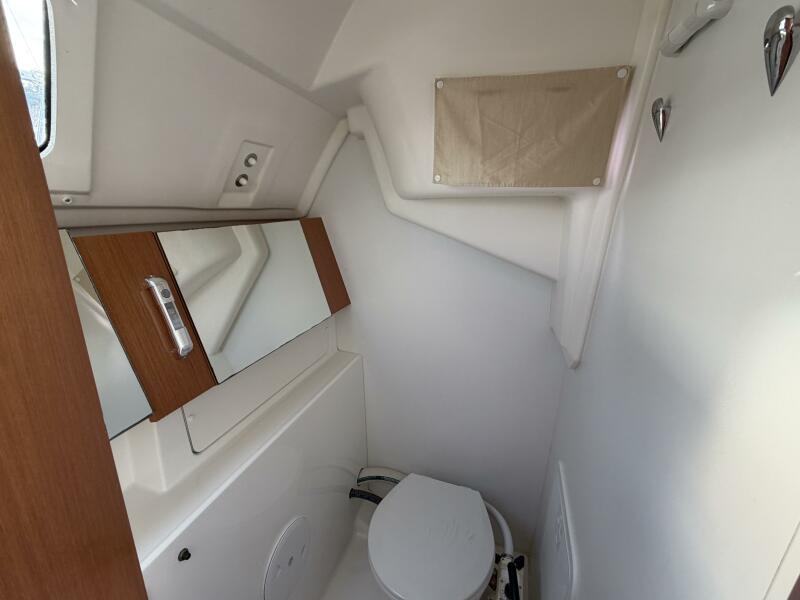

STARBOARD AFT HEAD

Access though the salon

1-shower pan with drain/Handheld shower wand

Manual marine toilet

21 gal holding tank

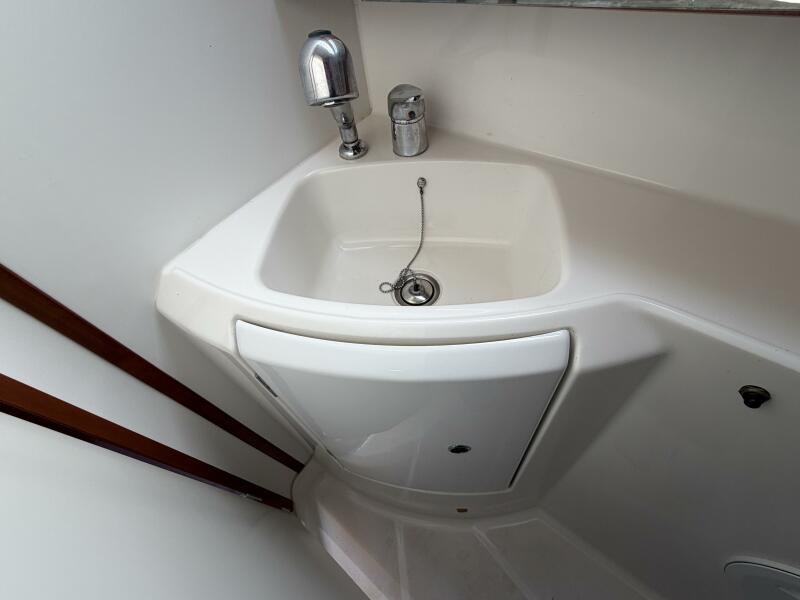

Worktop with wash basin

Hot/Cold pressure water w/mixer tap

2-enclsoed shelves behind mirrors

Locker under wash basin w/ waste bin and paper holder

Hooks on door

1-Opening port

2-Strip lights

PLUMBING

Fresh water;

Electric water pump with accumulator tank and filter protection system

1-rotomolded water tank fixed to the hull liner (34 gal beneath the port aft cabin berth)

SS water fillers

Cold water cockpit shower

Electric waste water pump for shower

2-bilge pumps (1-electric, 1-Manual)

Self-draining cockpit and side deck drainage

Hot water from a 6.6 gal electric heater

ELECTRICAL

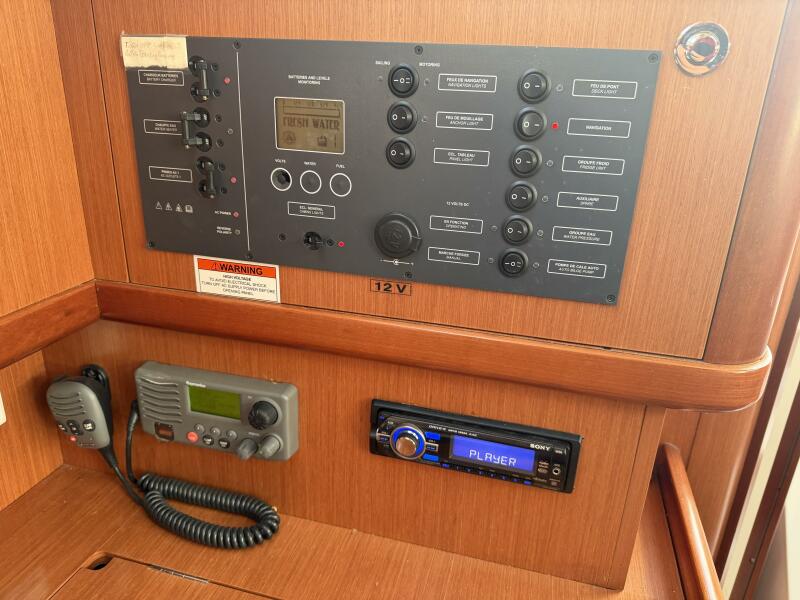

Electrical panel;

10-12 v switches & 9 fused switches

2-12v lighter socket

12v voltmeter

Water gauges and fuel gauge Via central LCD display screen

Low battery alarm

Low diesel & water tank alarm

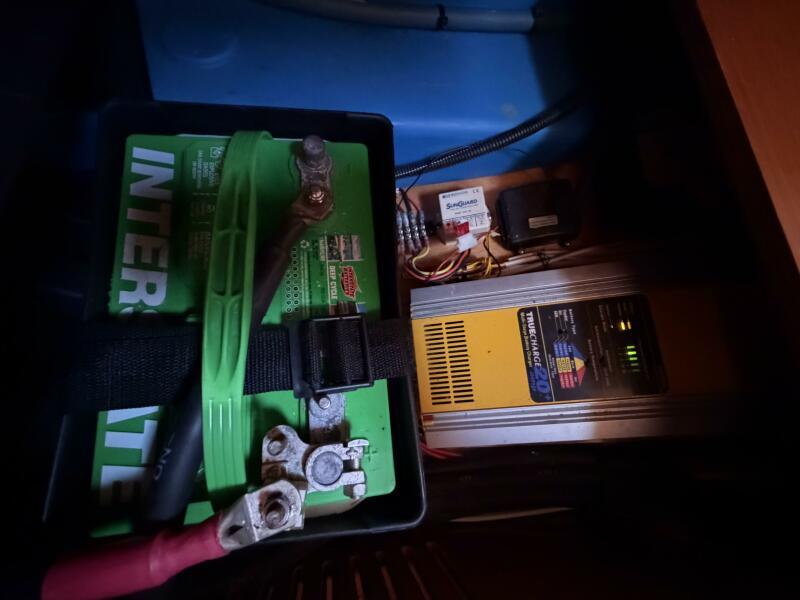

2-70 amp service battery (replaced 2025)

1-70 amp engine battery

60 AMP Alternator

Quest procharge 10amp battery charger

12v battery isolator

110V shore power w/cord

110v outlets

Lightening grounding for the rigging

8-Reading lights

7-Overhead halogen lights

Bow & Stern navigation lights

Masthead anchor light

Steaming light

Conduits for wiring options

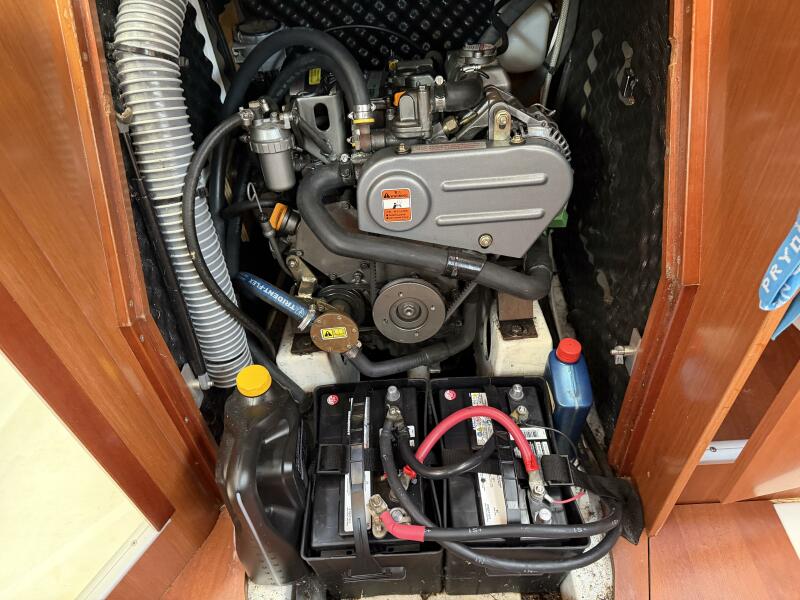

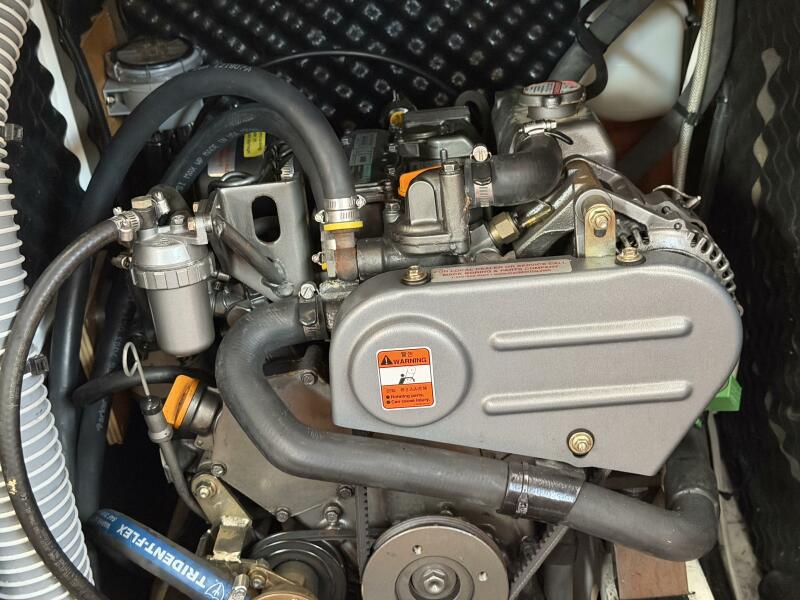

ENGINE

Yanmar 20HP FWC

SS drive shaft w/GRP protection molded into the hull

Engine bed integrated in the hull liner, soundproofed compartment with insulating foam

Access under companionway steps through an opening supported by gas struts

2-Access hatches in the head compartment & aft cabin makes engine access from all sides

Rotomolded 34 gal fuel tank w/electric gauge located under the aft starboard berth

Sea water strainer and diesel fuel filler

Engine control panel with built in key start and electric stop in the cockpit to starboard

ELECTRONICS

ICOM M422 VHF Radio with masthead antenna

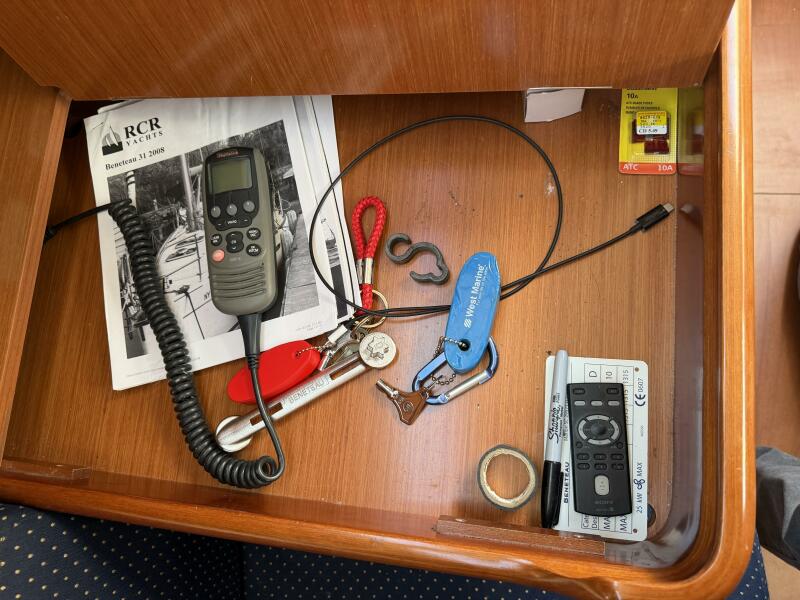

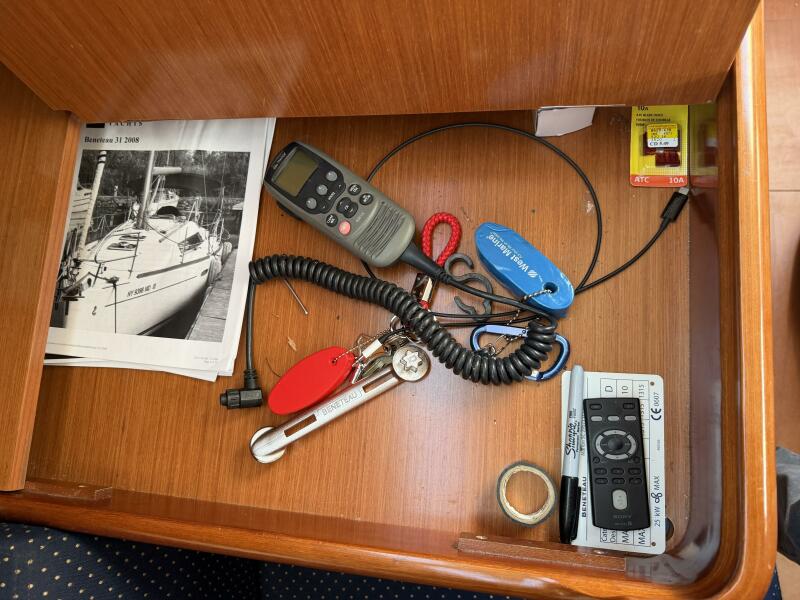

ICOM RAM remote microphone at the helm

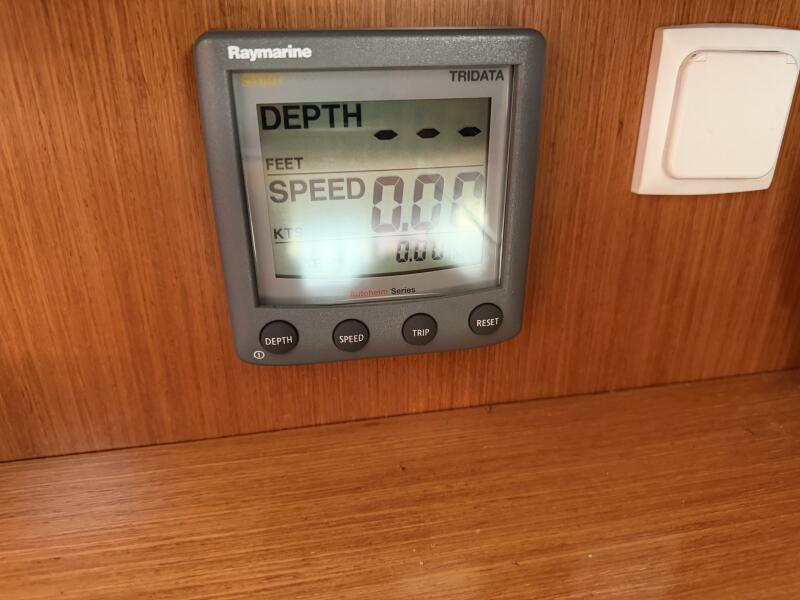

Raymarine ST60 Tri-Data (Knot, Depth, Log)

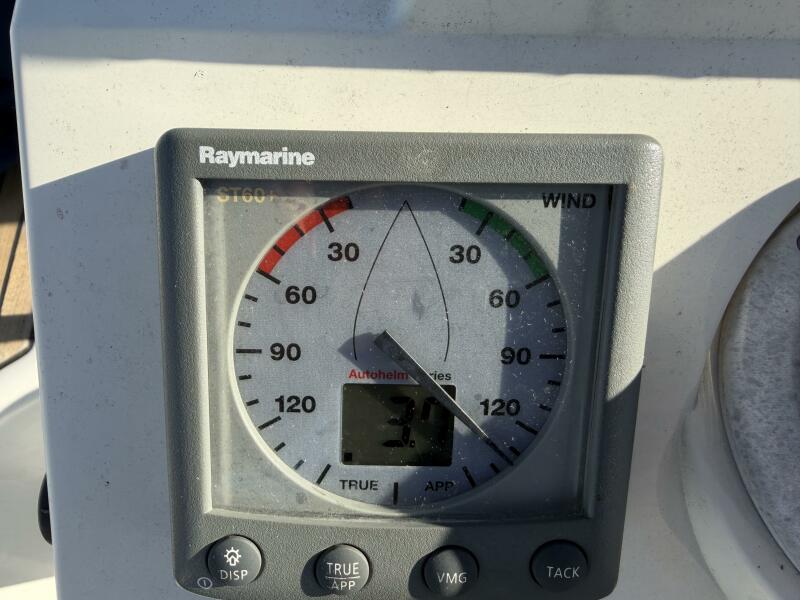

Raymarine ST60 Wind-(speed, direction)

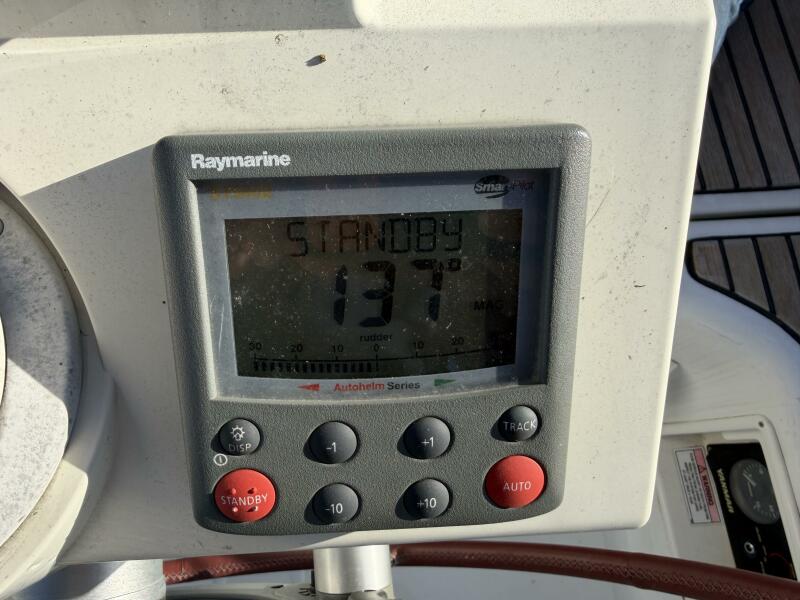

Raymarine S1 Wheel Autopilot

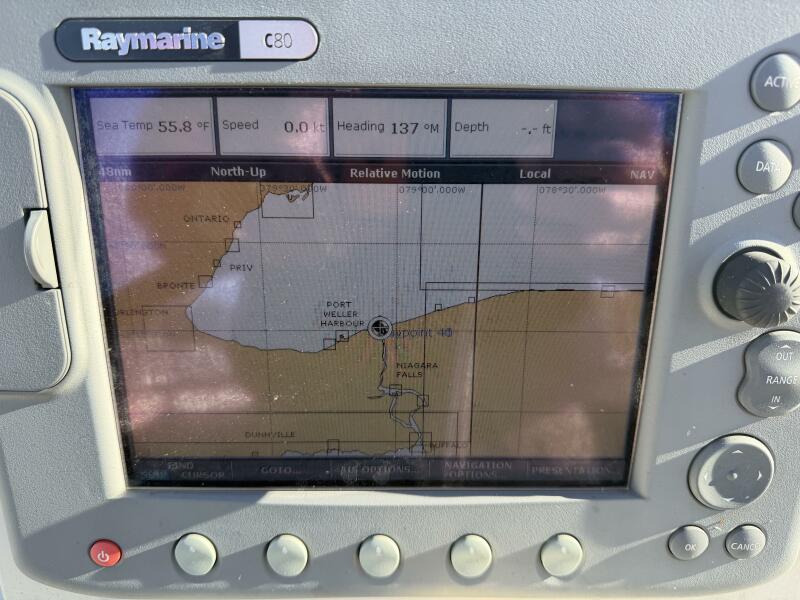

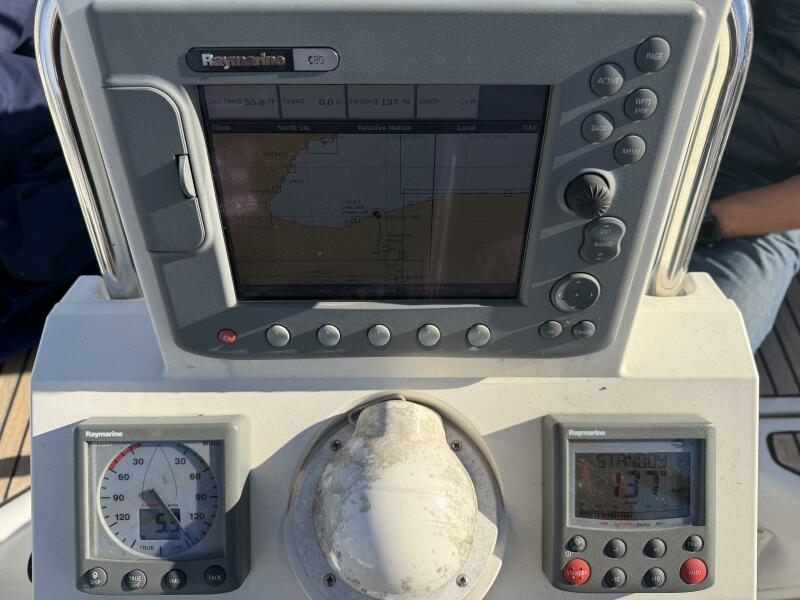

Raymarine C-80 Color Chart plotter

Raystar 125 GPS Antenna

Compass

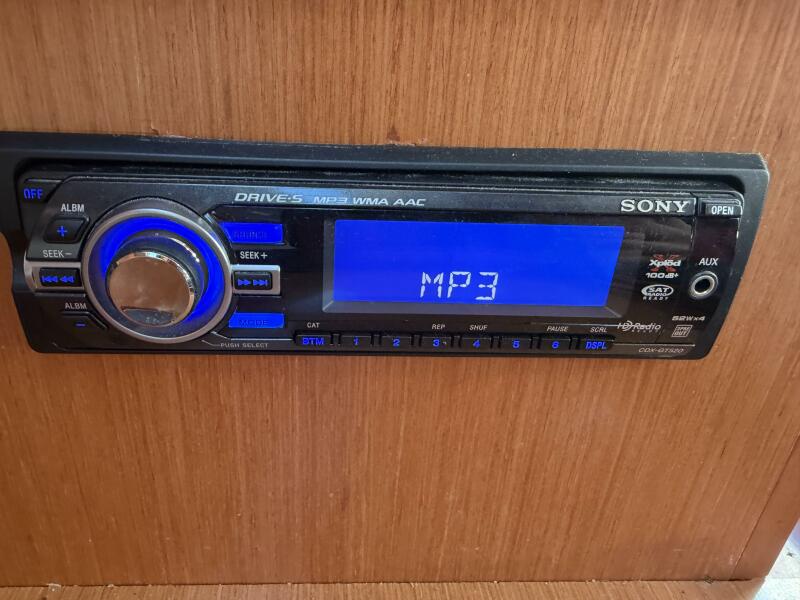

SONY CDX-GT520 AM/FM/CD Stereo w/cockpit and salon speakers
