CLAIRE

Motor Yachts CLAIRE

1. CONSTRUCTION

Fiberglass hull and superstructure

2. DIMENSIONS

2.1 General

Length Overall (L.O.A.): 100.00 feet (30.48 meters)

Beam (molded): 22.00 feet (6.71 meters)

Draft (loaded): 6.50 feet (1.98 meters)

Tonnage: 193 gross

2.2 Capacities

Fuel Capacity: 5,025 US Gallons (19,021 liters)

Water Capacity: 1,500 US Gallons (5,678 liters)

Lube Oil: 110 US Gallons (416 liters)

Waste Oil: 110 US Gallons (416 liters)

2.3 Speed

Maximum: 23.0 knots

Cruising: 16.0 knots

3. MACHINERY

3.1 Main Engines

Engine Type: (2) MTU M91 @ 1,800 Hp each

Gearboxes for Main Engines: Detroit Diesel

Drive: 4.721:1

3.2 Generators & Electricity

Generators: (2) 45 kW Onan generators

Shore Power: (2) 100 AMP

3.3 Air Conditioning

Type: (4) Cruisair A/C compressors

3.4 Other Machinery

Watermakers: (2) 1500 gpd water makers with new membranes

Trim Tabs/Stabilizers: Naiad

Bow Thruster: American, hydraulic with Simrad bow thruster interface

Steering System: Hynautic

Fuel Separator & Filtration: Parker Racor

Sewage System: Gorman-Rupp

Fresh Water System: (2) Grundfos SCALA2 pumps

4. COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

4.1 Communication Systems

SATcom: Intellian VSAT

VHF:

• (2) ICOM M605
• radio 110

4.2 Navigation Systems

Radar: Furuno XBand w/ Big Bay 17” monitors

Magnetic Compass: Ritchie

Auto Pilot: SIMRAD AP70

Depth Sounder: (2) B&G

GPS:

• (4) Garmin
• Northstar 952X
• Garman 6208 (flybridge)

Wind/Speed Log: Airmar

Navtex: Furuno

4.3 Entertainment System:

a. Video Equipment

TV’s:

• 42” popup TV (salon)
• 43" tv (Flybridge)
• 32' Samsung Picture Frame TV (Galley)
• 55" Samsung Picture Frame TV (Master)
• 32" Picture Frame TV (VIP forward)
• (2) 32" Picture Frame TV (guest staterooms)
• Satellite TV Intellian S80HD

b. Audio Equipment

Stereo’s:

• Sonos / JL speakers

5. GALLEY & LAUNDRY EQUIPMENT

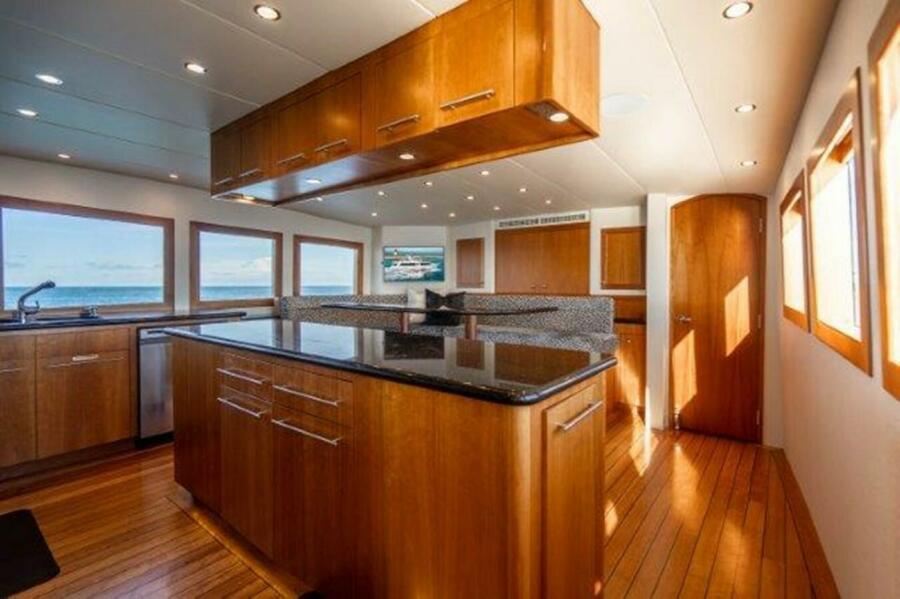

5.1 Main Galley Equipment

Cooking Equipment:

• Kitchen-Aid 4 burner cooktop
• Kitchen-Aid convection oven

Refrigeration/Freezer: Sub Zero

Dishwasher: Yes

5.2 Laundry Equipment

Main Laundry Equipment: Whirpool Thin Twin

6. TENDERS & TOYS

Tenders: Williams 435 Jet

Other: (2) Sea-Doo GTI 130

7. DECK EQUIPMENT

Anchor Windlass System: Maxwell VWC 6000

Aft Warping Capstans: Maxwell 3500

Anchors: (2)

Anchor Chain: 450 feet

Boat Crane and Davits: Marquipt 2500

8. SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

8.1 Security Equipment

CCTV System: Elbex

Cameras: (4)

Monitors: (1)

8.2 Fire Fighting Equipment

Fire Control System: Halden Suppression System

Fire Extinguishers: (18)

Alarms: Hatteras Ships System

8.3 Safety Equipment

Life Rafts: (2)

Life Rings: (1)

EPIRBS: (1)

Flares: Yes

Medical Equipment: First Aid Set

9. ACCOMMODATIONS

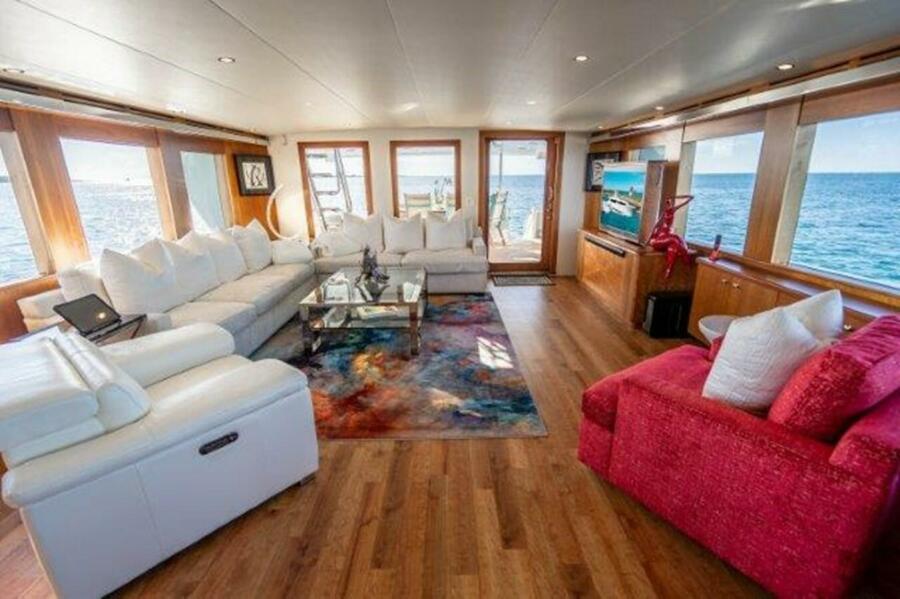

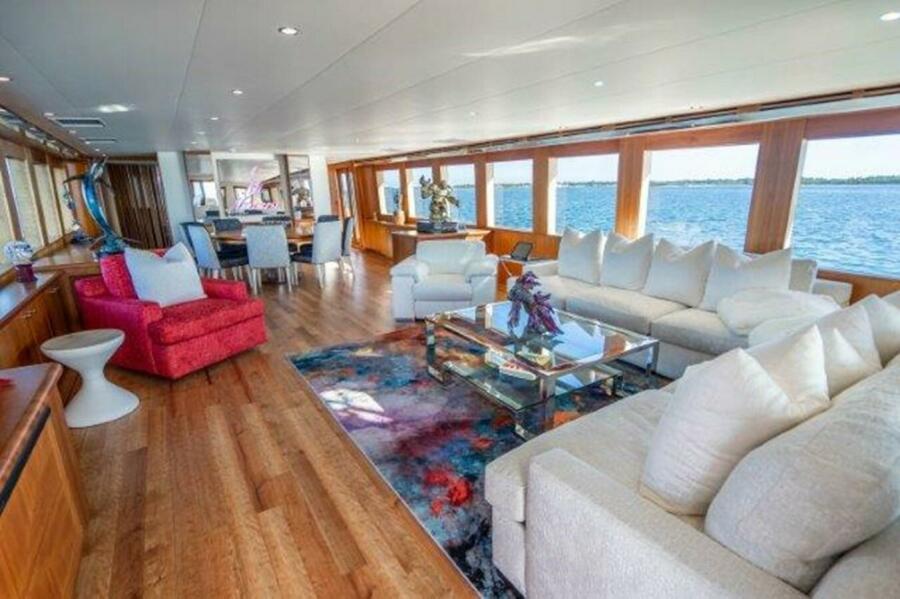

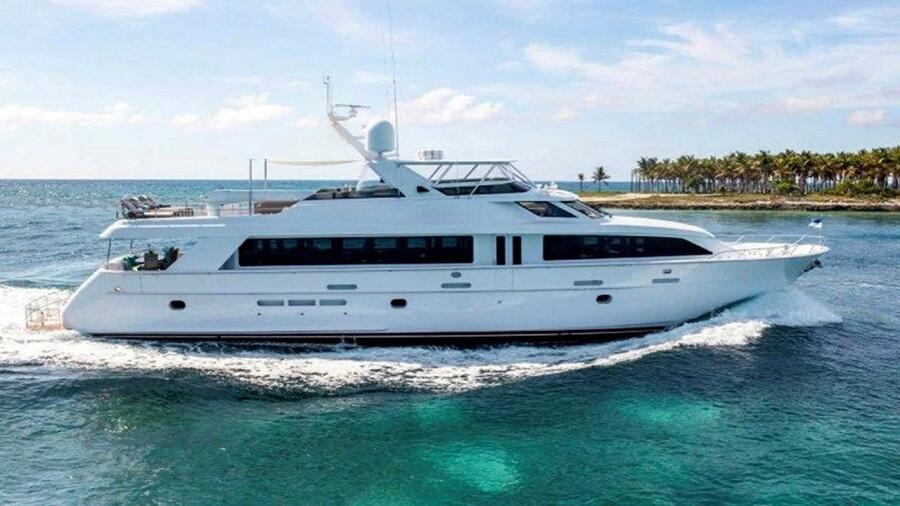

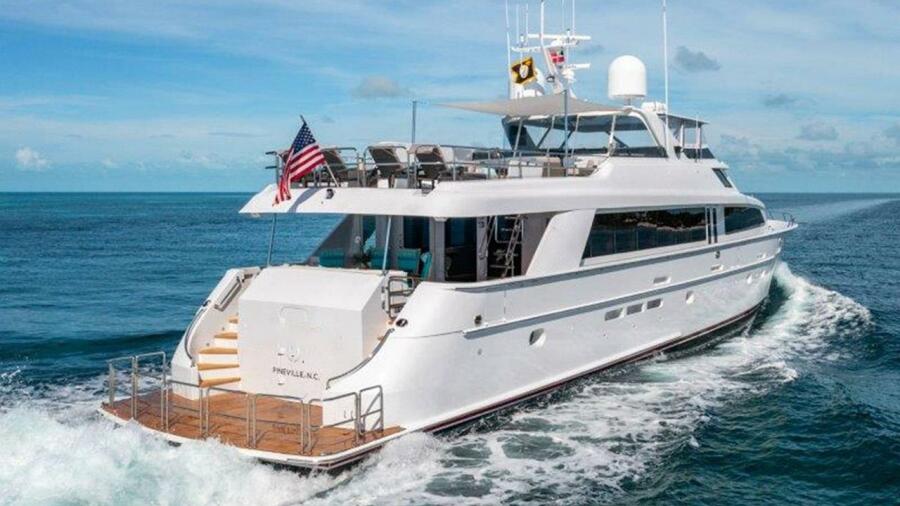

The interior layout of this 2003 100' Hatteras MotorYacht accommodates up to 8 guests across 4 staterooms. These staterooms consist of a Master Stateroom, VIP stateroom, and 2 double/twin staterooms. CLAIRE showcases timeless styling, adorned with exquisite furnishings and plush seating throughout, resulting in an elegant and comfortable ambiance. All the staterooms are situated on the lower deck of CLAIRE.

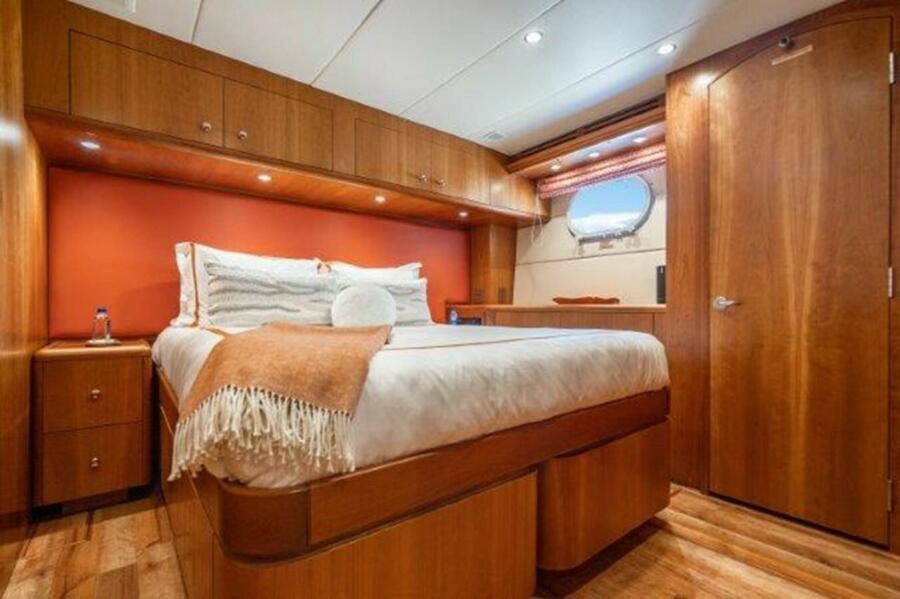

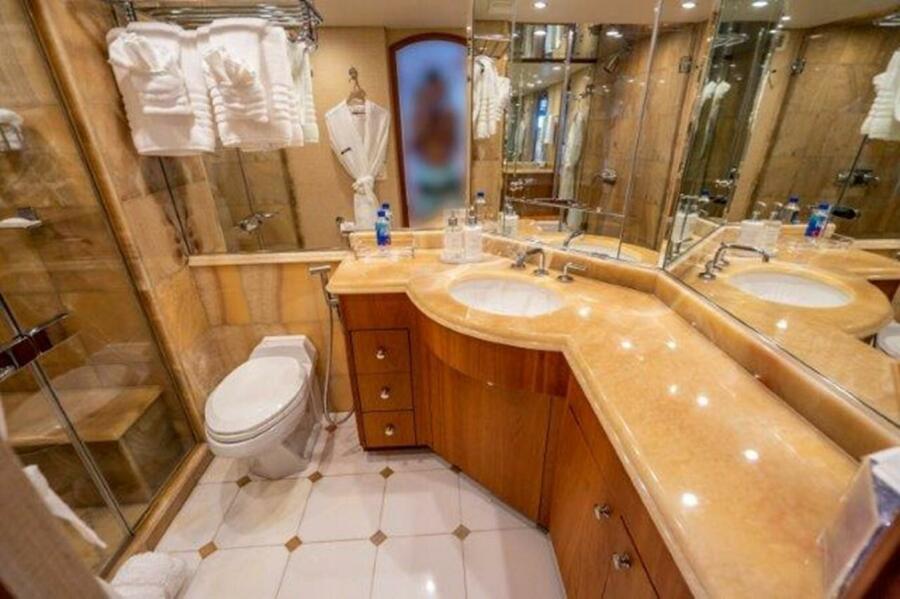

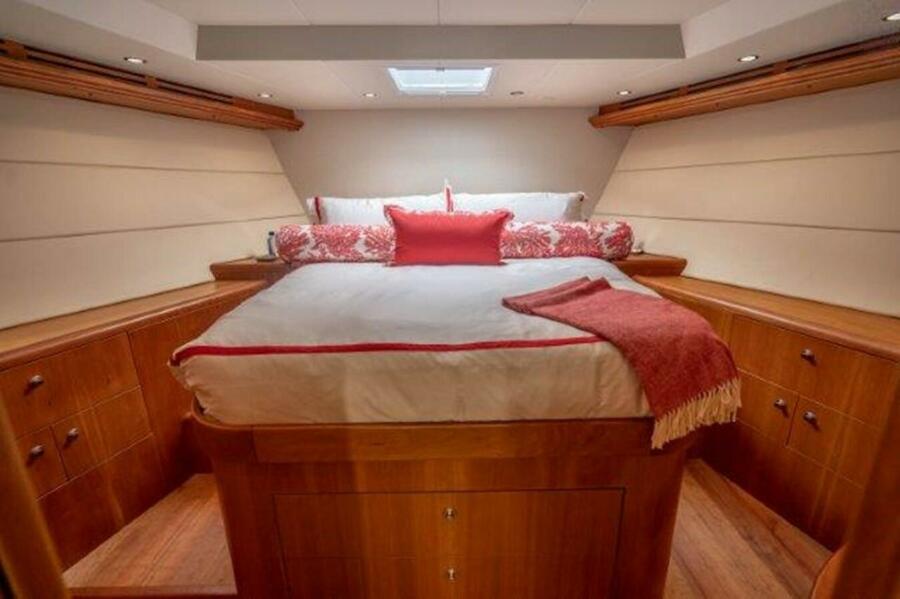

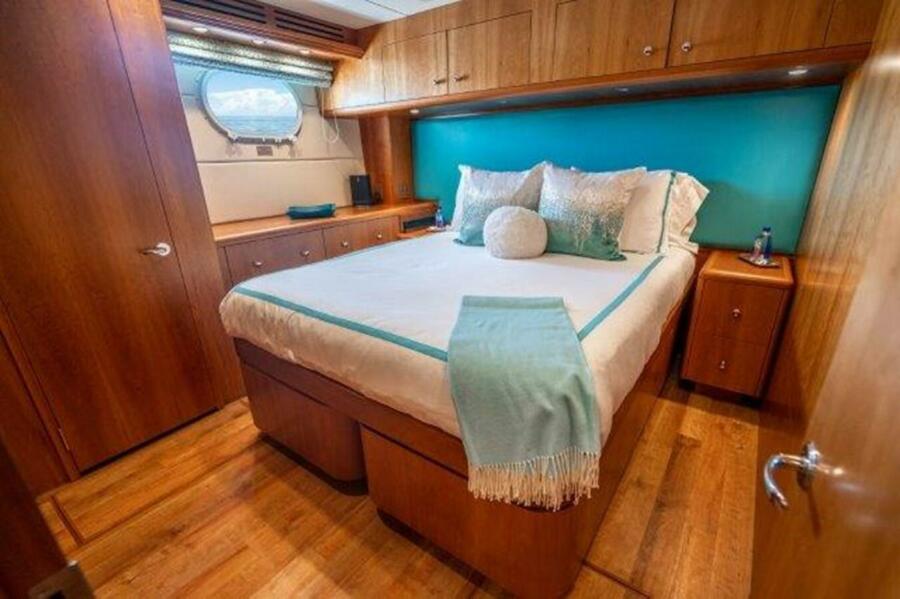

The full-beam Master Stateroom boasts a king-sized berth with a custom headboard, an ensuite marble head and shower, and a separate built-in vanity. The VIP stateroom, located forward, offers a queen-sized berth and an ensuite bathroom, along with a built-in wardrobe. The guest staterooms, located below deck, mirror each other, featuring queen-sized beds and complete ensuite bathrooms with showers.

CLAIRE is can accommodate up to 4 crew members on board, ensuring a peaceful and luxurious yacht experience. The captain's cabin offers a double berth, a hanging locker, a full entertainment system, and a private ensuite bathroom. Meanwhile, the crew cabin features twin over/under berths, a hanging locker, and an adjoining head.

10. REFIT/UGRADE HISTORY

Refit: 2023

• Installed new transmission heat exchangers
• Installed (2) new multi voltage shore power transformers
• Purchased & installed (2) new shore power cords & fittings
• Steering rams rebuilt
• Repaint non-skid on decks
• Repaint Exterior super structure as needed
• Install new laminated floors in crew area
• Install new refrigerator on aft deck
• Install new icemaker on fly bridge deck
• Install new Garmin Radar in Plot House
• New Williams 435 Jet tender with deck chocks
• New (2) Sea-Doo GTI 130 wave riders with deck chocks

Refit: 2021

Salon

• Furniture
• Wallpaper
• Apple TV
• Sonos/Control 4
• Day head remodel
• Updated upholstery
• iPad
• Electric shades
• Soft goods

Galley

• Electric shades
• New dishwasher
• Hood vent
• 32' Samsung Picture Frame TV
• Sonos speakers
• Apple TV/D TV
• Universal remote
• Wallpaper
• Soft goods

Master Stateroom

• King size mattress
• Electric shades
• A/C blowers
• DTV/Apple TV
• Sonos sound system
• Control 4 system
• Headboard
• 55" Samsung Picture Frame TV
• Wallpaper
• Soft goods

Forward VIP

• Queen mattress
• 32" Picture Frame TV
• Universal Remote
• DTV/Apple TV app
• Soft goods

Port & Starboard Staterooms

• Queen mattresses
• 32" Picture Frame TV
• DTV/Smart TV
• Updated headboards
• Soft goods

Crew

• Wallpaper
• Mattress
• Carpet
• Soft goods

Aft Deck

• Teak
• Sonos/JL speakers
• Refrigerator
• LCD stern lights
• Upholstery

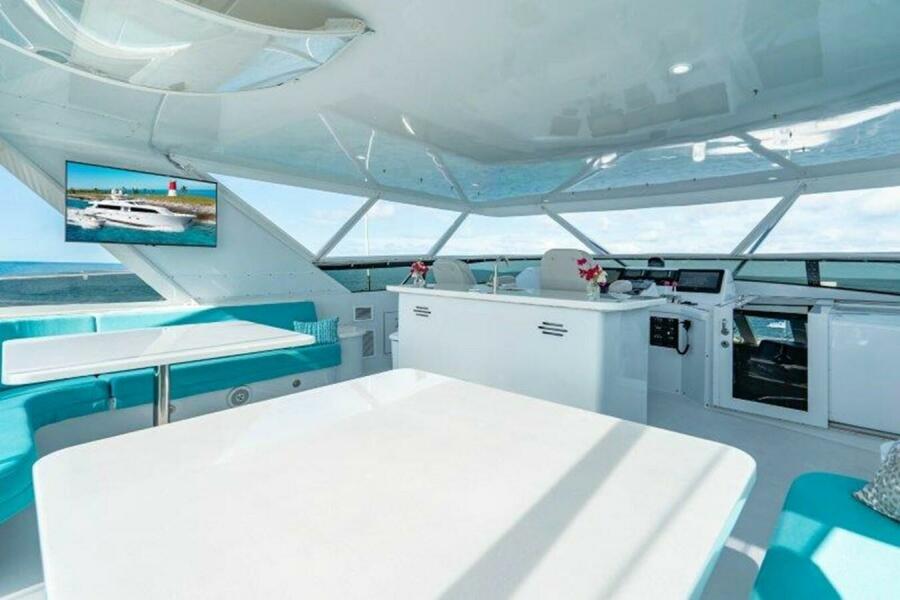

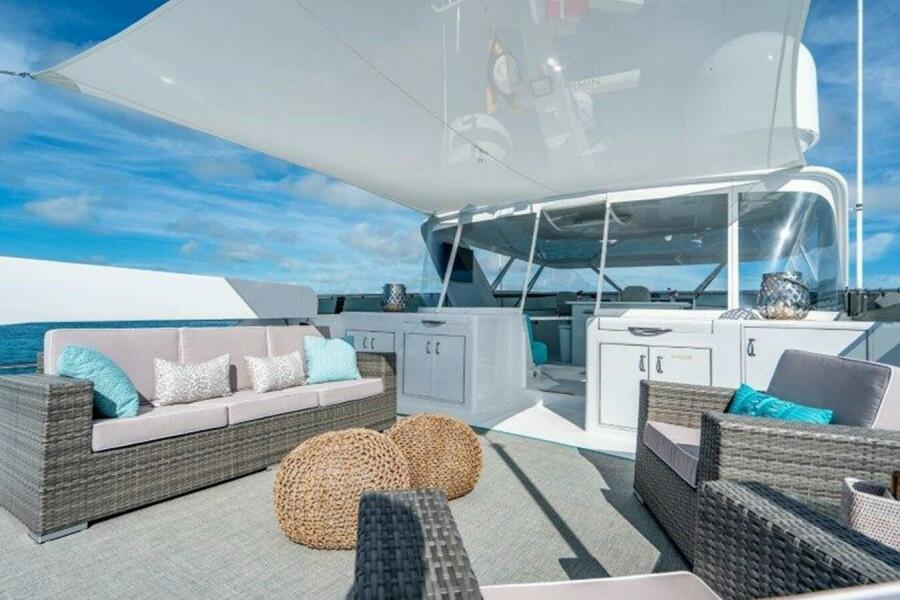

Flybridge

• A/C - Eisenglass enclosure
• New wing station controls
• Garmin displays 8617
• Pepwave Media fast modem
• ICOM VHF radio
• 43" TV/DTV
• Light up bar top
• Refrigerator
• Corian countertops
• Upholstered captain chairs
• Intellion SAT dome
• Outdoor furniture
• Railings
• Ghost system
• Engine Room - New 2021
• LED lighting updated DC/AC
• Cooler serviced 2100 hours
• Oil changed 2100 hours
• Generator covers painted
• New steering cooling pump
• Chillers descaled August 2021

Additional Areas

• Entire hull painted, tow rail down April 2021
